Sirius F9P

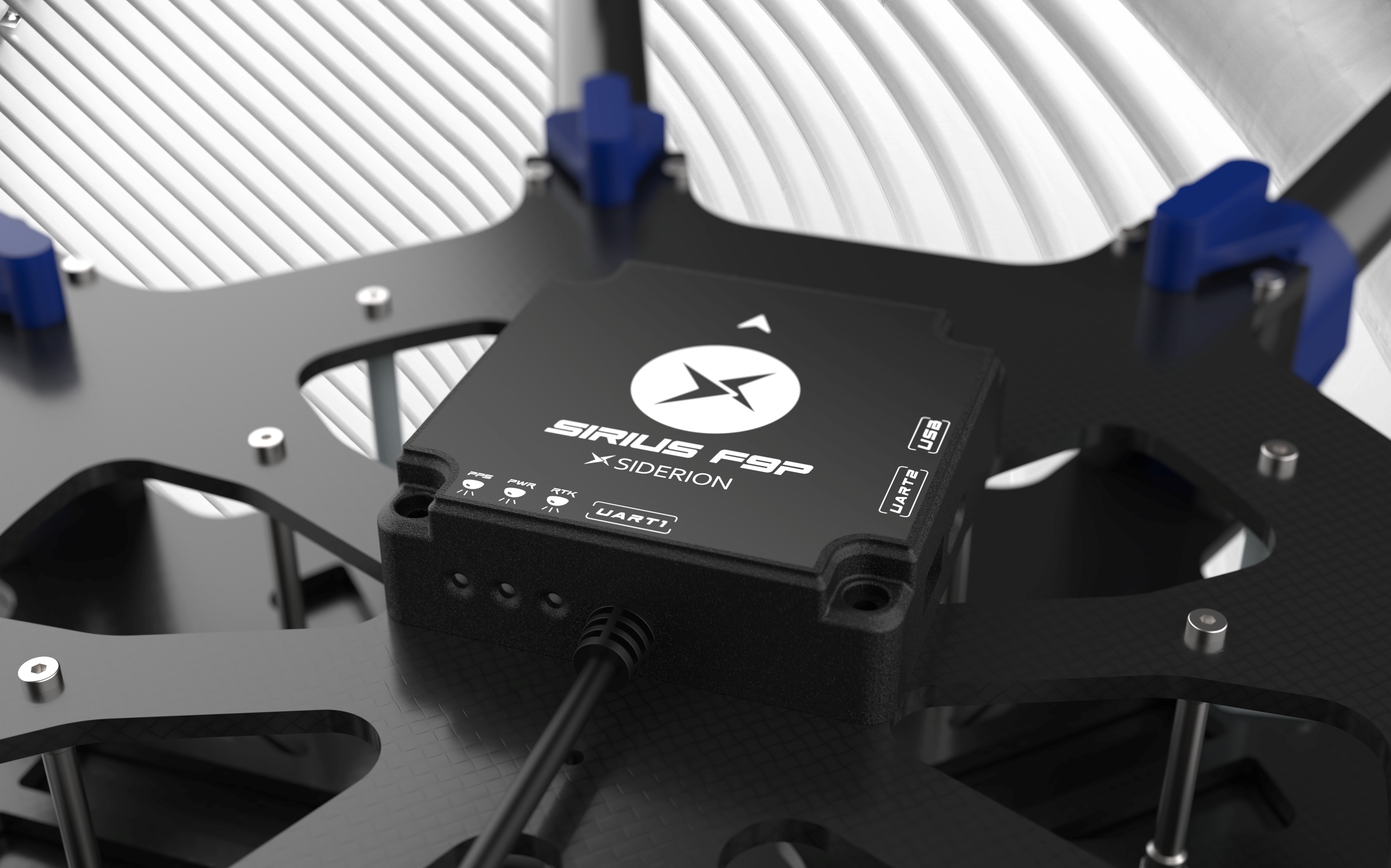

Provide a reliable rover module to your drone with SIRIUS RTK GNSS ROVER (F9P).
Volume discounts
- From 50 pcs = You save 10%
- From 100 pcs = You save 13%
- From 200 pcs = You save 15%
- From 500 pcs = You save 17%
Made in France
This product has been designed and manufactured in Toulouse, France.
Need help?
Could we assist you with any questions about pricing or a product?
Pairs well with
What is included?
Main features
Description
High-Precision Multi-Band GNSS Module for Professional Drone & Autonomous Systems
Upgrade your drone or autonomous system with the SIRIUS F9P, a high-precision, multi-band L1/L2 GNSS module designed for centimeter-level accuracy in demanding environments.
Powered by the u-blox ZED-F9P chipset, this RTK GNSS rover delivers 1 cm positioning accuracy, sub-10-second convergence, and a 20 Hz update rate, making it the ideal choice for drone surveying, precision agriculture, aerial mapping, and autonomous navigation.
Why Choose the SIRIUS F9P?
✅ Unmatched Accuracy: Achieve 1 cm RTK precision with multi-band GNSS for reliable positioning in urban, rural, and challenging environments.
✅ Dual-Band L1/L2 Technology: Reduces ionospheric interference, ensuring faster convergence and superior accuracy compared to single-band GNSS receivers.

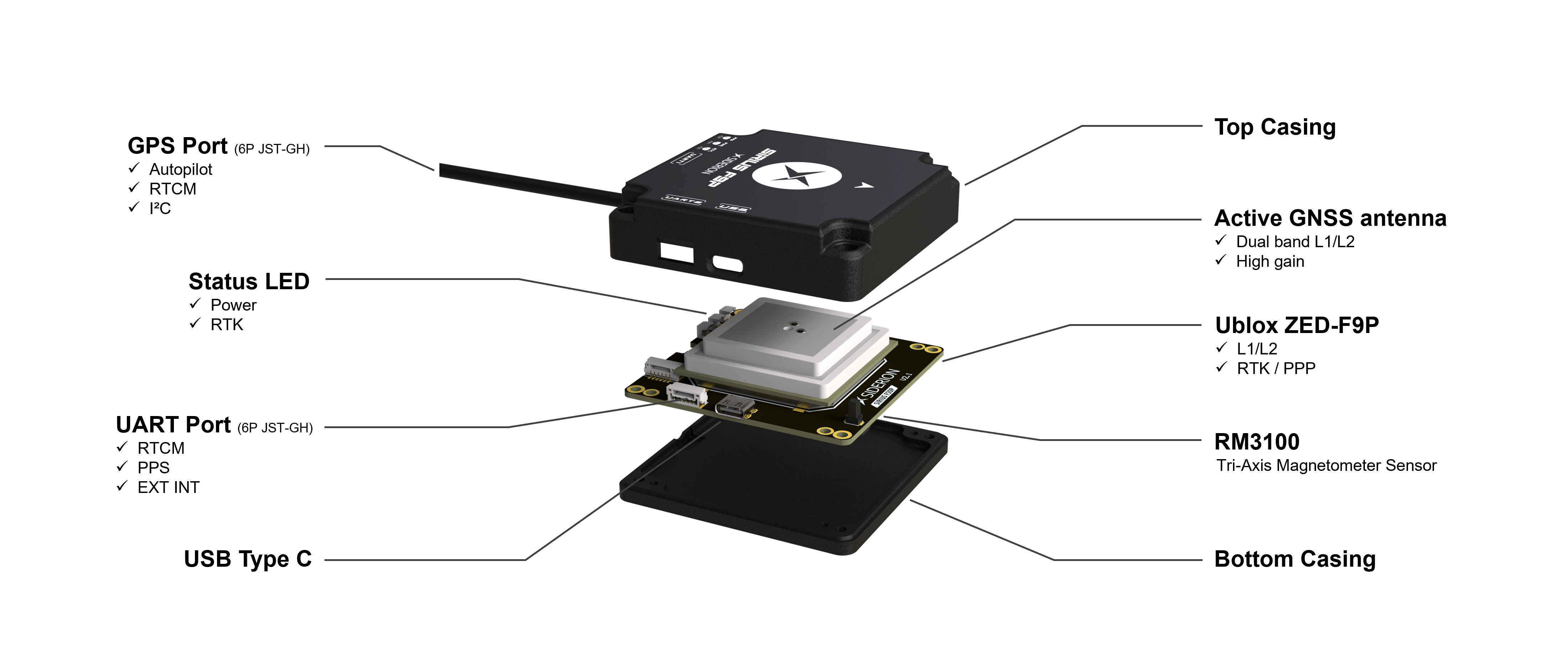

✅ Integrated RM3100 Magnetometer: Provides professional-grade heading, eliminating magnetic interference from motors and metal parts for precise drone navigation.
✅ Anti-Jamming & Spoofing Protection: Advanced detection keeps your system secure, alerting you to GPS spoofing or signal interference.

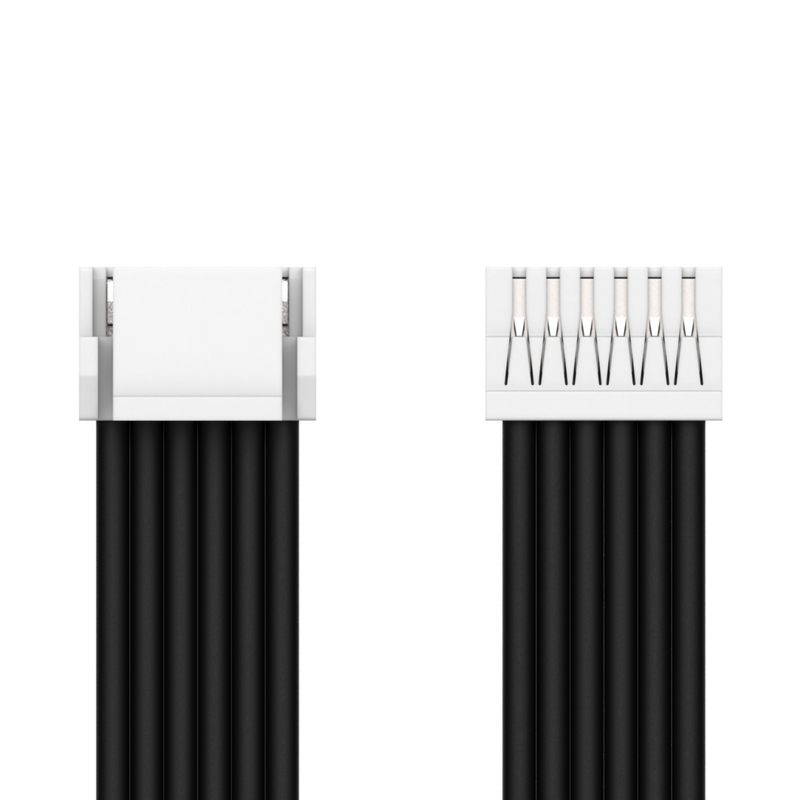

✅ Plug-and-Play Compatibility: Seamlessly integrates with any autopilots via a 6-pin JST-GH connector, with support for UART, I2C, USB, and MAVLink protocols.
✅ Fast & Reliable: 20 Hz update rate for real-time responsiveness in dynamic applications.
Key features & Specifications
| Feature | Specification |
|---|---|
| Position accuracy | 1 cm (RTK) |
| Convergence time | <10 seconds |
| Update rate | Up to 20Hz |
| Supported constellations | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Magnetometer | RM3100 (professional grade) |
| Connectivity | UART, I2C, USB, MAVLink |
| Interface | USB, 6-pinJST-GH connector |
| Correction services | RTCM v3.x, SSR, SBAS, PPP, RTK |
Ideal Applications
Drone surveying & mapping
Precision agriculture
Autonomous vehicle navigation
Robotics & industrial automation
Aeronautical & UAV systems

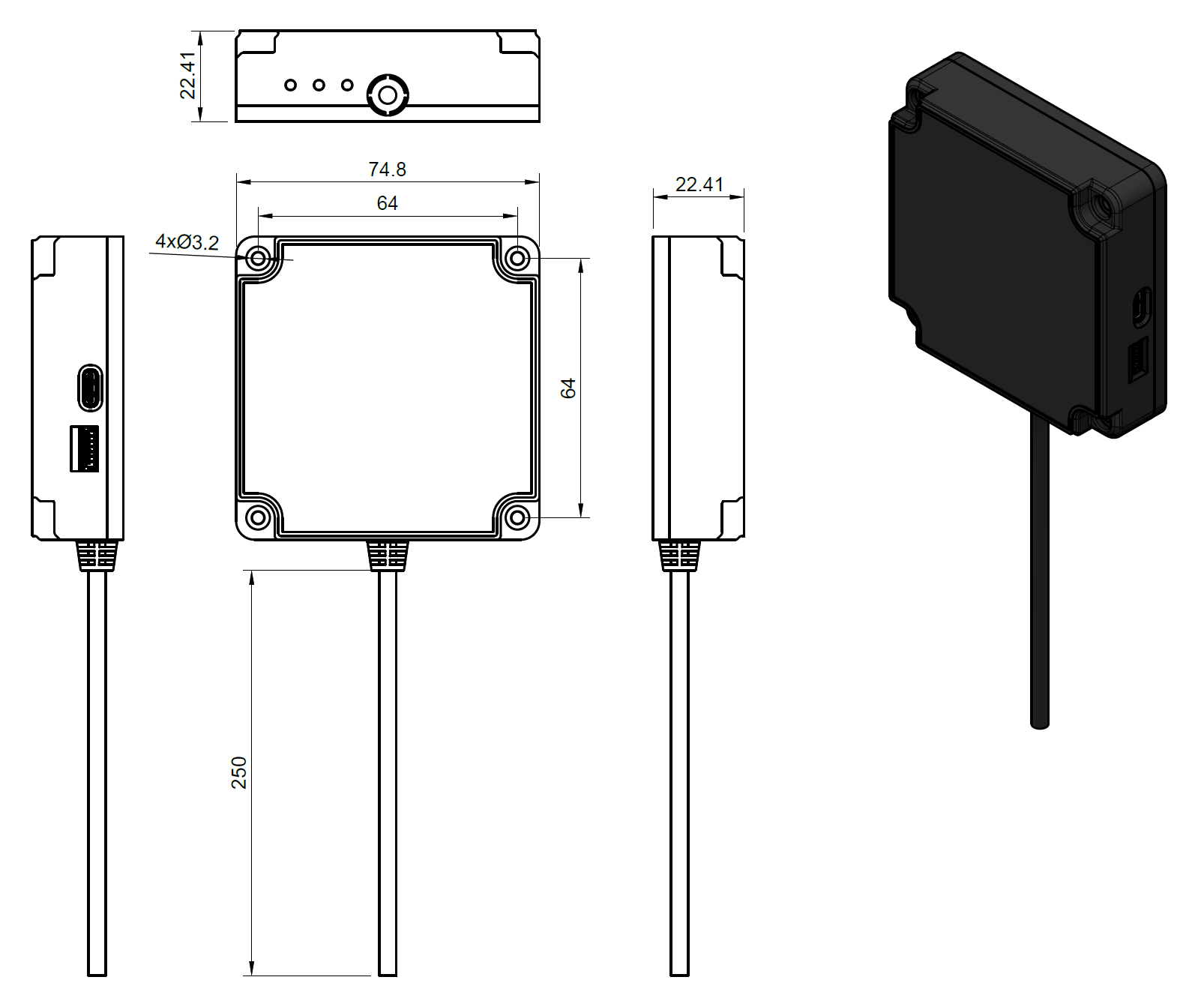

Mechanical
