SID-GNSS-RTK-BEACON_F20P

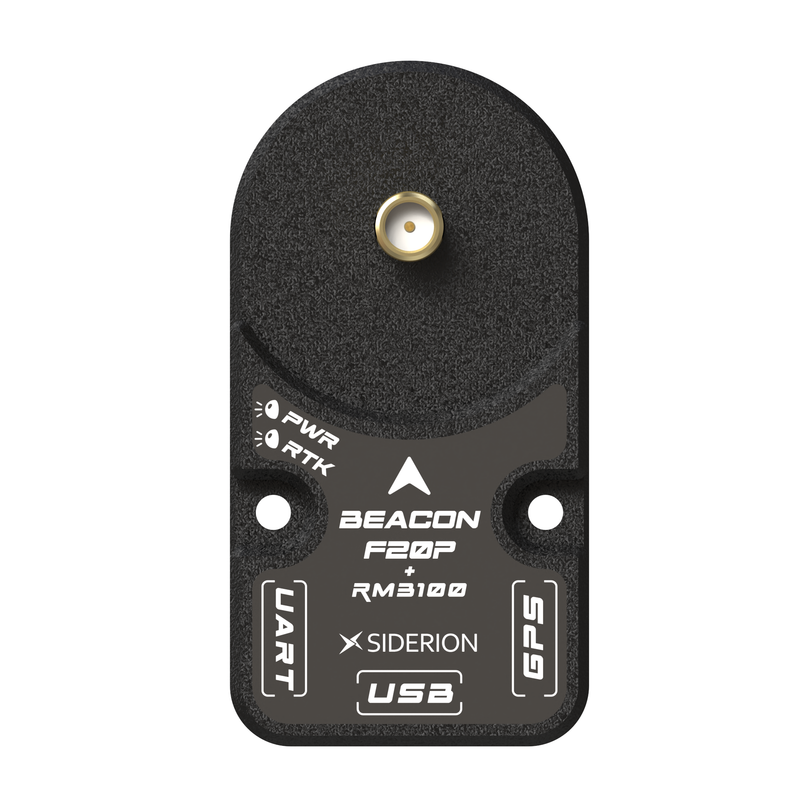

Beacon F20P
Tax excluded
Triple-band L1/L2/L5 ZED-F20P GNSS RTK module. Onboard RM3100 and BMP581 sensors
Volume discounts
- From 50 pcs = You save 10%
- From 100 pcs = You save 12.5%
- From 200 pcs = You save 15%
- From 500 pcs = You save 17.5%
Made in France
This product has been designed and manufactured in Toulouse, France.
Need help?
Could we assist you with any questions about pricing or a product?
Pairs well with
Beacon F20P
What is included?
1x Beacon F20P
2x 6P JST-GH
Main features
Description
High-Precision Multi-Band GNSS Module for Professional Applications
Key features & Specifications
| Feature | Specification |
|---|---|
| Supported constellations | GPS/SBAS, Galileo, BeiDou, QZSS, GLONASS, NavIC |
| GNSS bands | L1 / L2 / L5 |
| Position accuracy | 0.6mm (RTK) |
| Convergence time | <7 seconds (RTK) |
| Position update rate | Up to 25Hz |
| Timepulse (PPS) | Configurable: 0.25 Hz to 10 MHz |
| Antenna Input | Active Antenna |
| Interface | USB, UART, SPI, GPS |
| Correction services | NMEA v4.11, UBX binary, RTCM v3.4, SPARTN v2.0.2 |

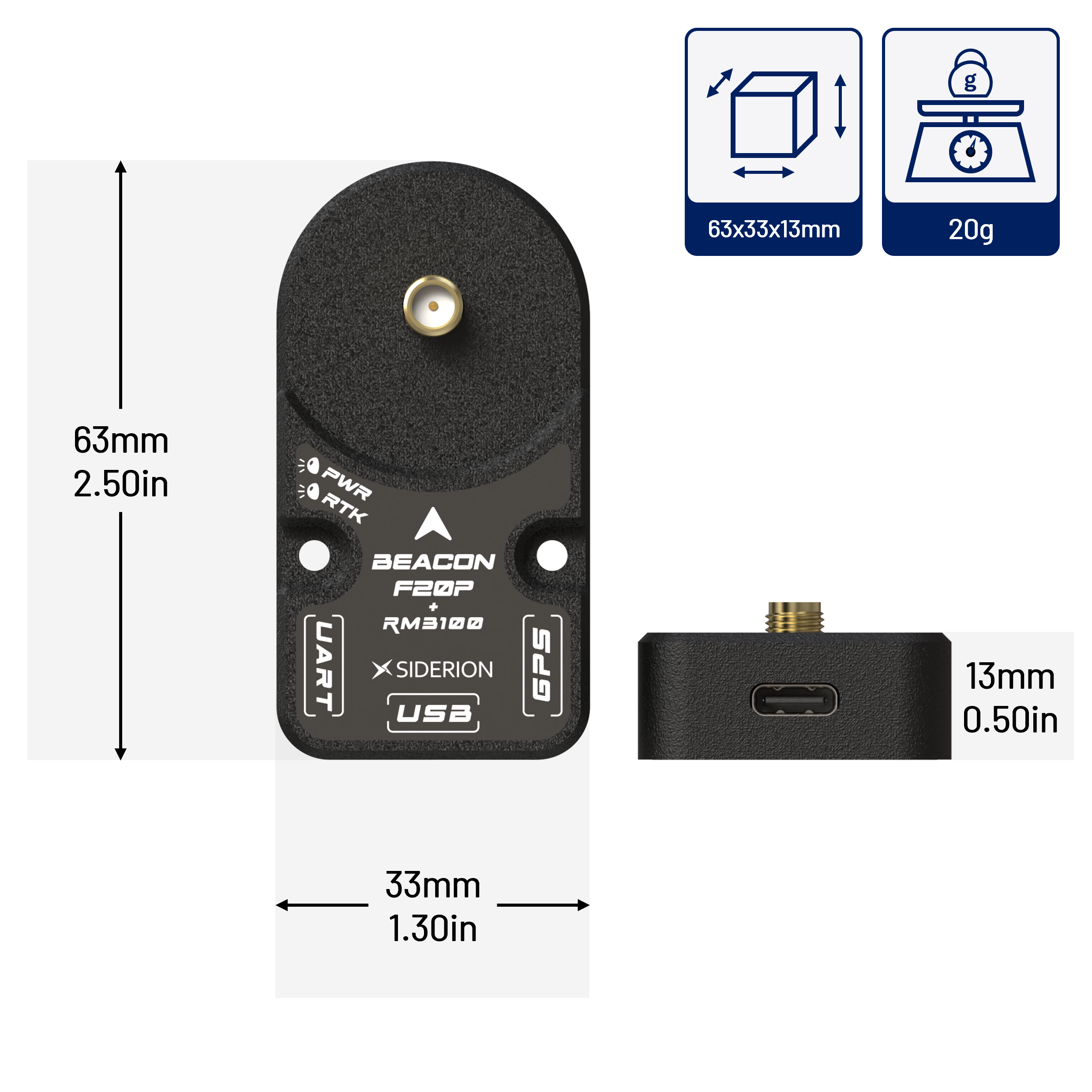

| Physical | Weight: 20g / Size: 63x33x13.4mm |

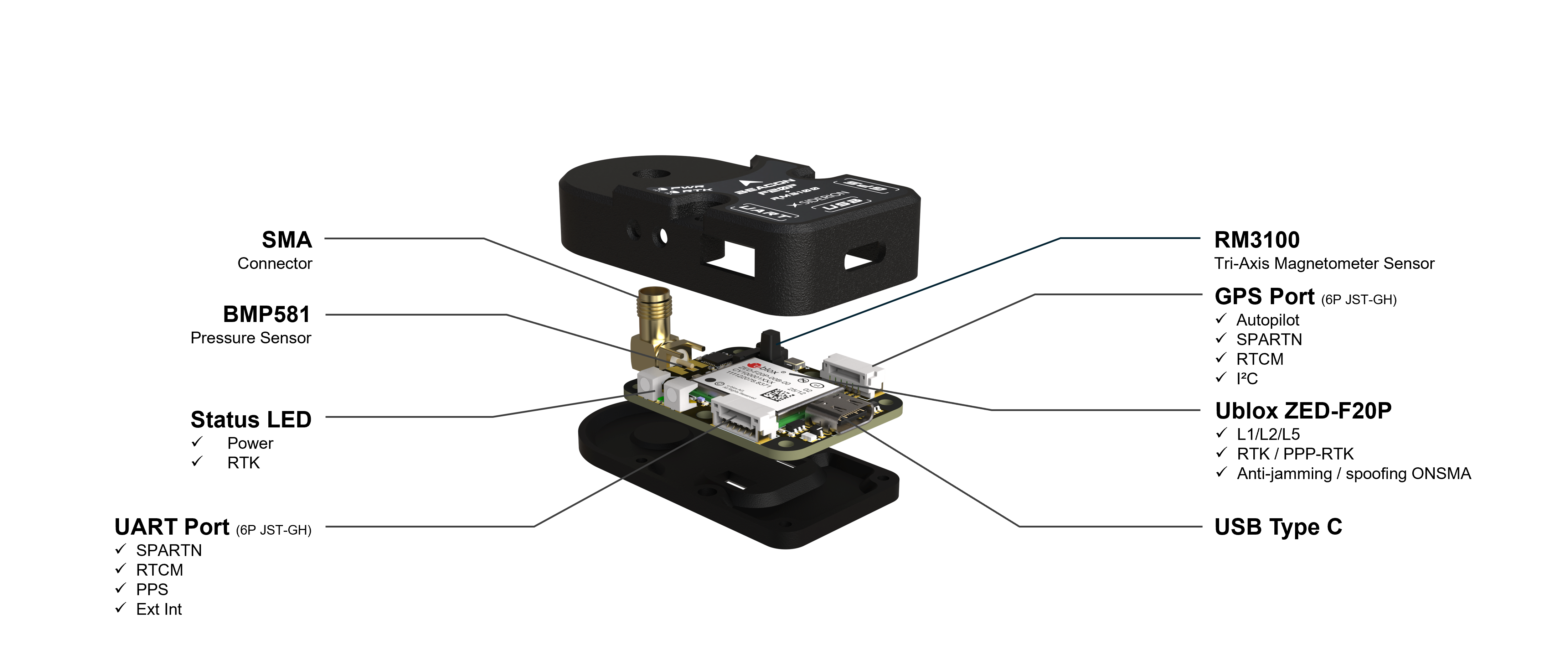

What is inside the Beacon F20P?
Why Choose the Beacon F20P?
✅ Centimeter-Level Accuracy: Achieves 6mm (0.6cm) precision with multi-band RTK GNSS.
✅ Triple-Band L1/L2/L5 Technology: Reduces ionospheric interference, ensuring faster convergence and superior accuracy compared to single-band GNSS receivers.
✅ Fast Convergence: Sub-7-second RTK convergence for rapid, reliable positioning.
✅ Versatile Correction Support: Compatible with RTCM, VRS, and Network RTK for flexible, high-accuracy positioning.
✅ Compact & Energy-Efficient: Perfect for OEM integration and low-voltage applications.
✅ Base or Rover Operation: Use as a standalone receiver or in a base-rover RTK configuration.
✅ Anti-Jamming & Spoofing Protection: Advanced interference suppression for secure operation in challenging environments.
✅ Plug-and-Play Compatibility: Seamlessly integrates with any autopilots via a 6-pin JST-GH connector, with support for UART, I2C, USB, and MAVLink protocols.
✅ Fast & Reliable: Up to 25 Hz update rate for real-time responsiveness in dynamic applications.
Ideal Applications
➤ Drone surveying & mapping
➤ Precision agriculture
➤ Autonomous vehicle navigation
➤ Robotics & industrial automation
➤ Aeronautical & UAV systems
