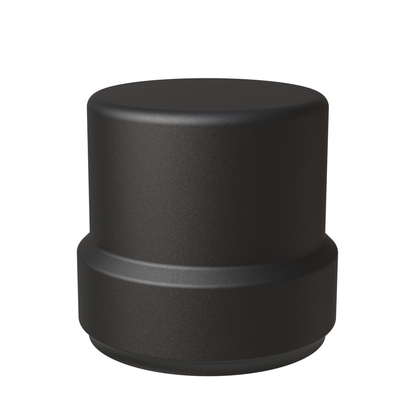

A siderion SA435 GNSS helical pod antenna. On a white background.

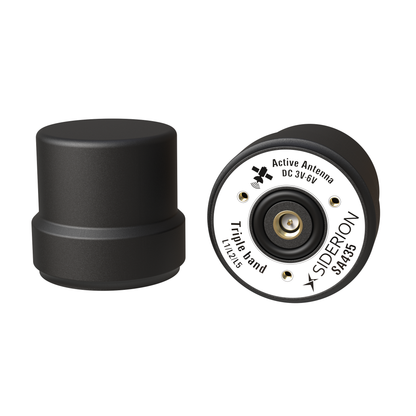

Black antenna with Siderion branding on a white background
SA435
NEW

SA435

€54,90
tax excl.

SID-GNSS-ANT-SA435

In stock
Pod-form-factor triple-band L1/L2/L5active GNSS antenna featuring 35 dB LNA signal gain.

Pod-form-factor triple-band L1/L2/L5active GNSS antenna featuring 35 dB LNA signal gain.

Ships in 1-2 business days when in stock

Ships in 1-2 business days when in stock

Pairs well with
Official Siderion resellers ⤵︎

RC-NETSHOP.DK ⤴

ATGROUP.STORE ⤴

Volume discounts ⤵︎
  • From 50 pcs = You save 10%
  • From 100 pcs = You save 12.5%
  • From 200 pcs = You save 15%
  • From 500 pcs = You save 17.5%
Need help?

Can we assist you with any questions about the pricing or our product?

Contact us

Made in France

Secure payments

Worldwide delivery

24/7 Support

SA435

Pod-form-factor triple-band L1/L2/L5active GNSS antenna featuring 35 dB LNA signal gain.

Affordable and highly efficient triple-band L1/L2/L5 GNSS helical active antenna.

Download section
Download section

Technical:

What's included?
What's included?

✔ 1x SA435

SA435 overview

Technical

📡 SA435
GNSS bandsGPS: L1/L2/L5
GLO: G1/G2/G3
BDS: B1/B2/B3
GAL: E1/E5/E6
Peak Gain2.5dBi
Voltage3.0 to 6.0V
Operating current<45mA
LNA Gain35dB ± 3.0dB
IP RatingIP67
ConnectorSMA-J
Operating Temp-40°C to +85°C
Size43.5 x 40.8mm
Weight32g

Reasons to choose the SA435

🛰️ Broad Satellite Compatibility
Supports major GNSS constellations, including GPS, GLONASS, Galileo, and BeiDou.

〰 Triple-Band L1/L2/L5 Reception
Captures signals across multiple bands for superior multipath mitigation and robust signal tracking in challenging environments.

🌀 Helical Antenna Design
Provides high-gain (35dB), 360-degree coverage and exceptional low-elevation signal tracking without needing a ground plane.

⚖️ Ultra-Lightweight & Compact
Optimized weight profile (only 32g) specifically engineered for minimal impact on drone payload and flight times.

🛡️ High Phase-Center Stability
Ensures tight phase-center repeatability to maintain consistent, high-precision RTK performance.

☔ Rugged & Weatherproof
Durable enclosure built to withstand harsh outdoor operation and dynamic conditions (IP67 & -40°C to 85°C).

✅ Seamless Integration
Standard SMA-J connector layout allows easy connection to any GNSS modules.

Practical uses

✔ RTK GNSS bases and rovers
✔ Drones & UAVs
✔ Ground vehicles
✔ Precise navigation
✔ Portable devices
