GNSS Antenna Comparison
Siderion
SA233
Siderion
SA275
Siderion
SA435
Siderion

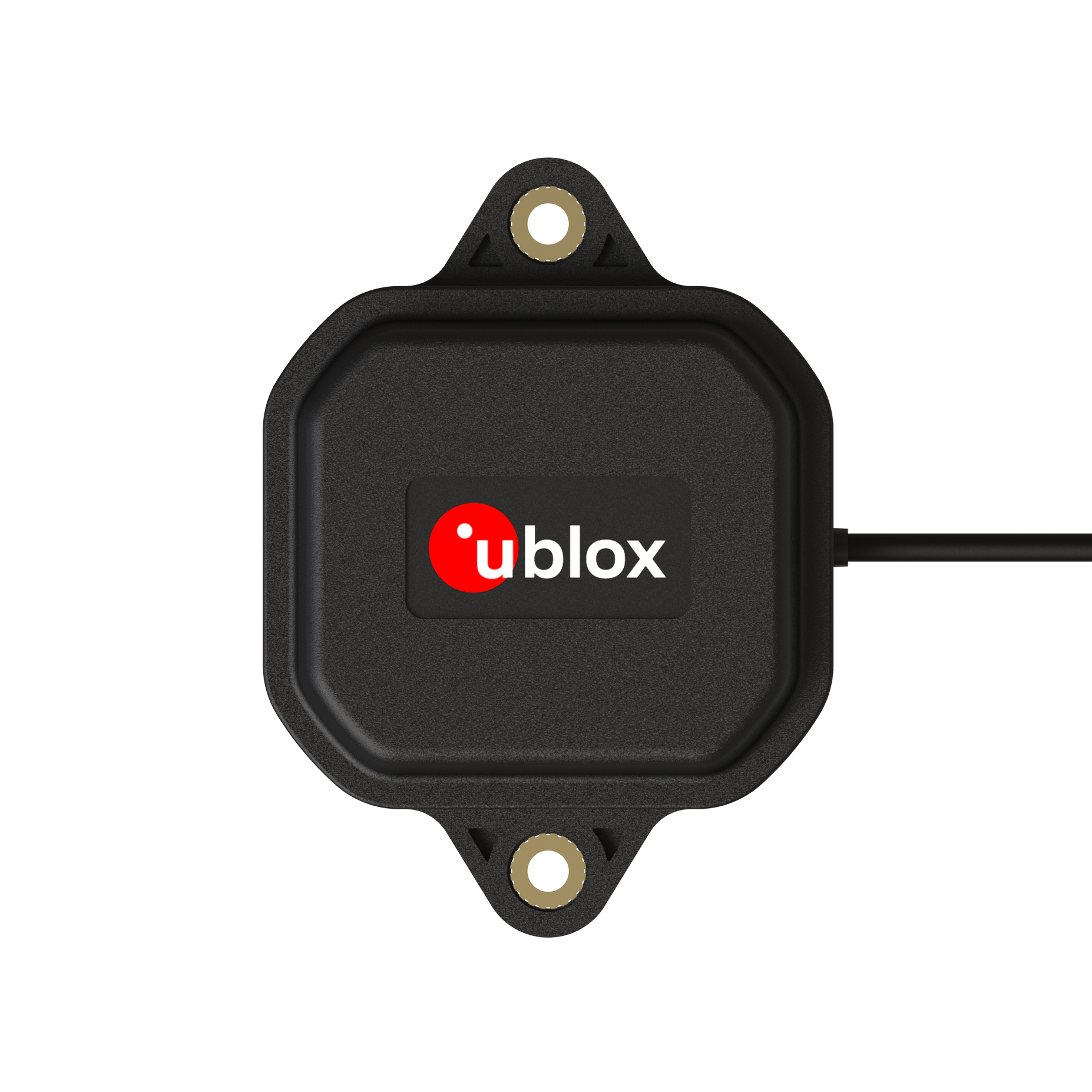

ANN-MB
Siderion
ANN-MB2
Siderion
SA910GNSS Bands
GPS: L1/L2
GLO: G1/G2
BeiDou: B1/B2/B3
GAL: E1/E2/E5/E6
GNSS Bands
GPS: L1/L2/L5
GLO: G1/G2
BeiDou: B1/B2/B3
GAL: E1/E5/E6
GNSS Bands
GPS: L1/L2/L5
GLO: G1/G2/G3
BeiDou: B1/B2/B3
GAL: E1/E5/E6
GNSS Bands
GPS: L1/L2
GLO: G1/G2
BeiDou: B1/B2
GAL: E1/E5b
GNSS Bands
GPS: L1/L2/L5/L6
GLO: G1/G2/G3
BeiDou: B1/B2/B3
GAL: E1/E5/E6
NavIC: L5
L-band: L6
GNSS Bands
GPS: L1/L2/L5
GLO: G1/G2/G3
BeiDou: B1/B2/B3
GAL: E1/E2/E5/E6
LNA Gain
39dB
LNA Gain
32dB
LNA Gain
35dB
LNA Gain
28dB
LNA Gain
31dB
LNA Gain
40dB
Voltage
3V to 12V DC
Voltage
3V to 6V DC
Voltage
3V to 6V DC
Voltage
3V to 5V DC
Voltage
3V to 5V DC
Voltage
3V to 12V DC
Size
59.2 x 27.5mm
Size
54.0 x 27.8mm
Size
43.5 x 40.8mm
Size
82.0 x 60.0 x 22.5mm
Size
108.5 x 92.9 x 24.7mm
Size
151.5mm x 66.5mm
Weight
20g
Weight
16g
Weight
32
Weight
173g
Weight
260g
Weight
350g
Achieve optimal signal reception and maximum positioning accuracy in any environment with Siderion high-precision GNSS antennas.
Engineered for dual-band (L1/L2) and triple-band (L1/L2/L5) tracking, our active antennas deliver exceptional multipath rejection, high LNA gain, and wideband signal coverage across GPS, GLONASS, Galileo, and BeiDou constellations.
Designed to pair seamlessly with Siderion RTK receivers and OEM systems, our antenna lineup is optimized for drones, robotics, surveying, and autonomous platforms. Whether you need lightweight helical antennas like the Siderion SA233, SA275, or SA435 for high-mobility UAV applications, robust patch antennas such as the ANN-MB and ANN-MB2, or high-gain survey-grade active antennas like the SA910, Siderion hardware ensures reliable signal lock and sub-centimeter performance even under dense canopy or in urban environments.
