SP0702 [F20P]

Delivers centimeter level accuracy within seconds based on Ublox triple-band L1/L2/L5 ZED-F20P GNSS RTK module.

Download as .pdf

Description

In production

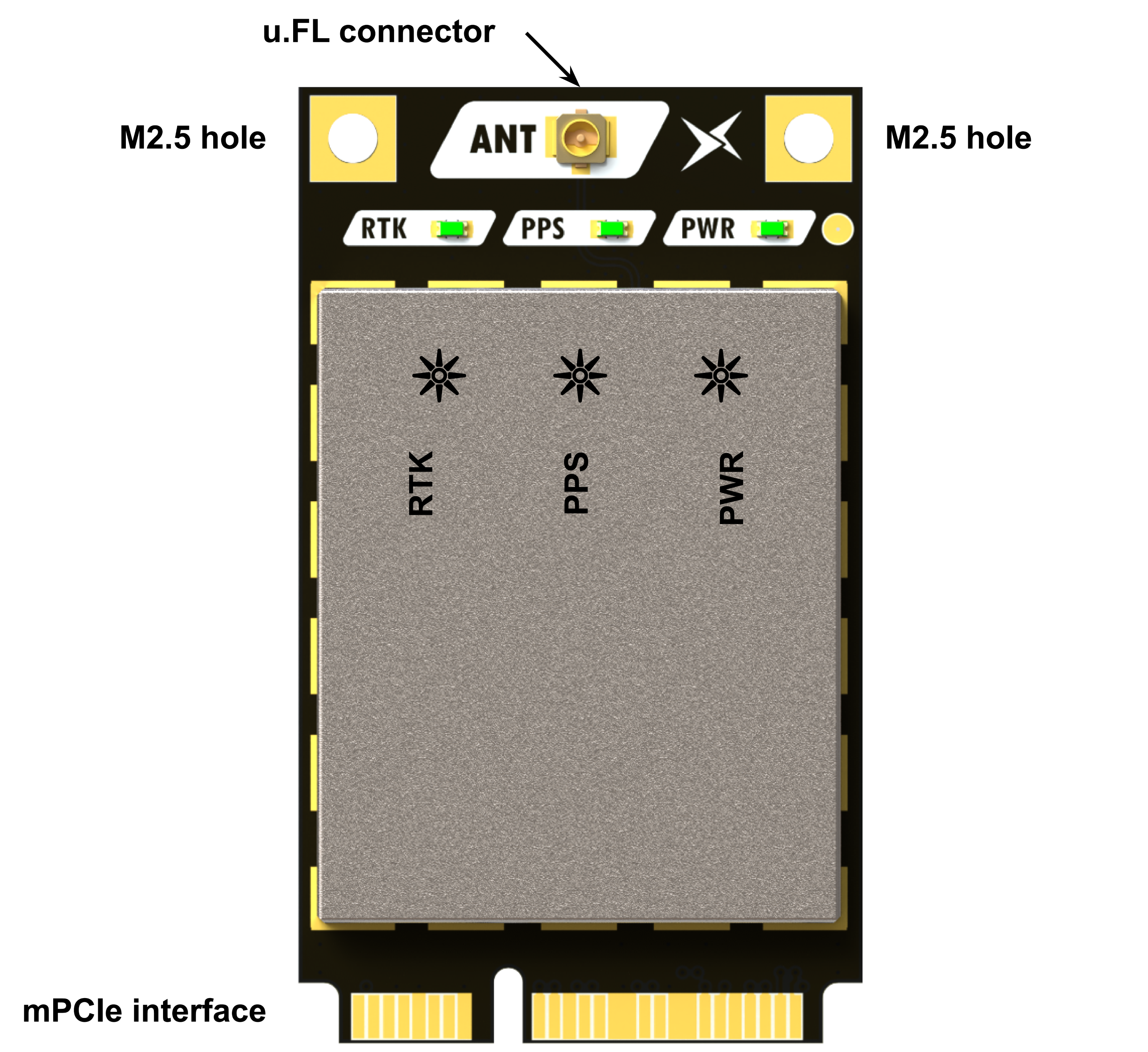

The Siderion SP0702 is an affordable, compact, and high-precision triple-band L1/L2/L5 GNSS RTK (Real-Time Kinematic) device.

Powered by the latest generation of u-blox ZED-F20P modules, the SP0702 supports concurrent reception of GPS, Galileo, BeiDou, QZSS, and NavIC signals. Consequently, the device delivers reliable performance and fast convergence, achieving centimeter-level accuracy in seconds.

Its mini PCI Express (mPCIe) interface makes it ideal for integration within embedded systems, drones, industrial tablets, ruggedized laptops, and other compact computing platforms.

The SP0702 operates across a temperature range from -40°C to +70°C.

Features

  • 3.3V - 100mA power supply
  • LEDs status: Power/RTK/PPS
  • Timepulse & External Interrupt
  • USB/I²C/UART digital interfaces
  • Gold plated mPCIe connector
  • 3.3V Active antenna input

Applications

  • Drones
  • RTK Base
  • Ground vehicles
  • Precise navigation
Block diagram & Pin description

BLOCK DIAGRAM

LED SEQUENCE

LED Name LED Color Light State Comments
POWER BLUE ON Solid blue LED when powered ON
RTK Status GREEN OFF 3D fix mode / No RTK fix
RTK Status GREEN BLINKING RTK fix but no FIXED RTK fix
RTK Status GREEN ON FIXED RTK fix
PPS GREEN BLINKING Blinking LED at defined PPS rate

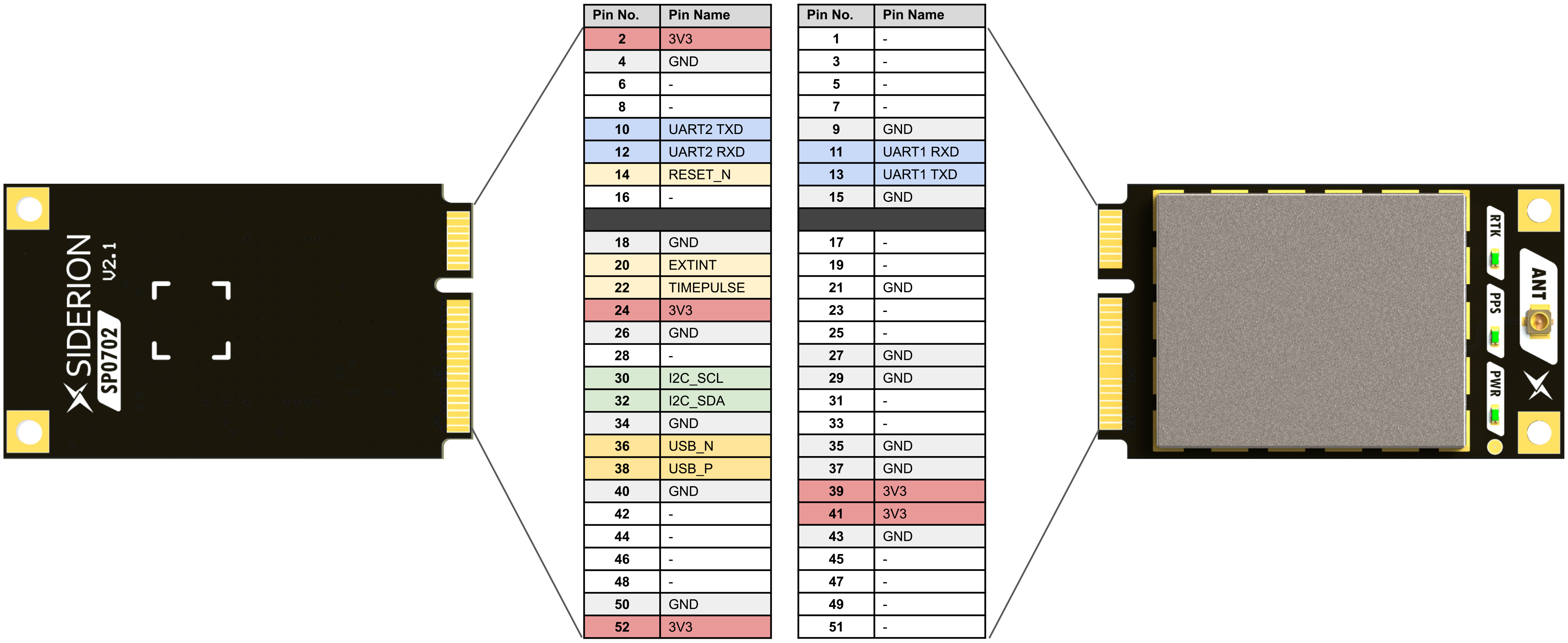

PIN DESCRIPTION

Electrical specifications
Symbol Parameter Min. Typ. Max. Units
Vdd Internal voltage 3.3 V
Vdd_IO IO voltage 3.3 V
Idd Current w/o active antenna 50 mA
Current w/ active antenna 100 120 130 mA
Vil I/O low level input volt 0 0.8 V
Vih I/O high level input volt 2.0 Vdd+0.3 V
Vol I/O low level output volt 0.4 V
Voh I/O high level output volt Vdd-0.4 V
Top Operating Temperature -40 +70 °C
GNSS specifications
System Signal
GPS L1C/A - L2C - L5
Galileo E1B/C - E5a
BeiDou B1l - B1C - B2a
QZSS L1C/A - L1C/B - L2C - L5
NavIC L1-SPS Data - L5-SPS
Parameter Specification Value
Receiver Type Multi-band GNSS high precision
Accuracy of PPS RMS 30ns
99% 60ns
Frequency of PPS 0.25Hz to 10MHz
Operational limits Dynamic <4g
Altitude 80,000m
Velocity 500m/s
Velocity Accuracy 0.03m/s
GNSS Parameter GPS+GAL+BDS
Acquisition Cold Start 25s
Hot Start 2s
Update Rate RTK/PVT/RAW up to 25Hz
Convergence Time RTK <7s
Horizontal pos. Accuracy PVT 1.2m CEP
RTK 0.006m + 1ppm CEP
Vertical pos. Accuracy RTK 0.01m + 1ppm CEP
Sensitivity Tracking & Nav. -167dBm
Hot Start -158dBm
Cold Start -148dBm

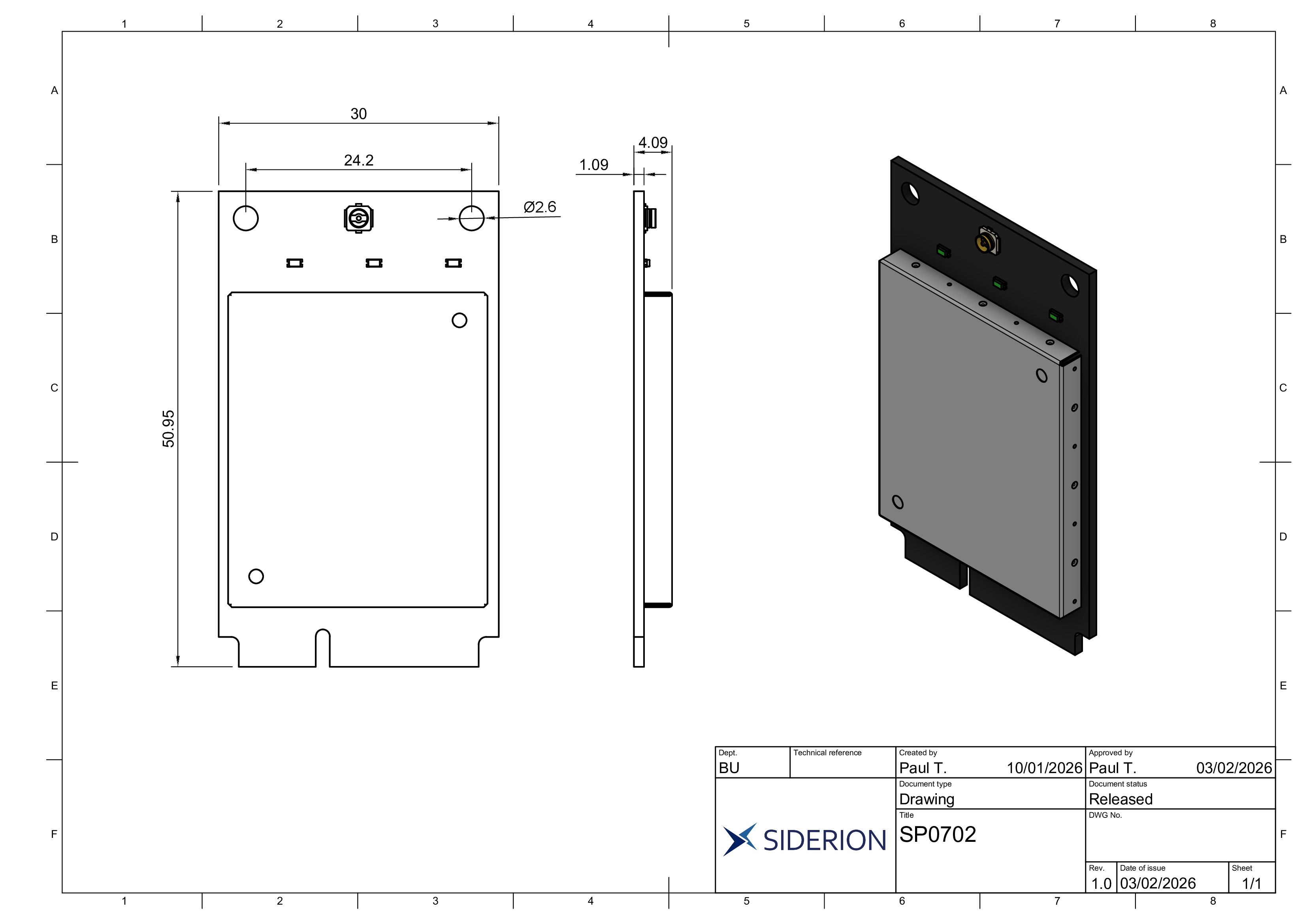

Mechanical
External Ressources

U-blox ZED-F20P datasheet: ZED-F20P-00B Data sheet

U-blox ZED-F20P integration manual: ZED-F20P Integration manual

U-blox ZED-F20P interface description: u-blox F20 HPG 2.02 Interface description
