Sirius F9P
€249,90
tax excl.
SID-GNSS-RTK-SIRIUS_F9P

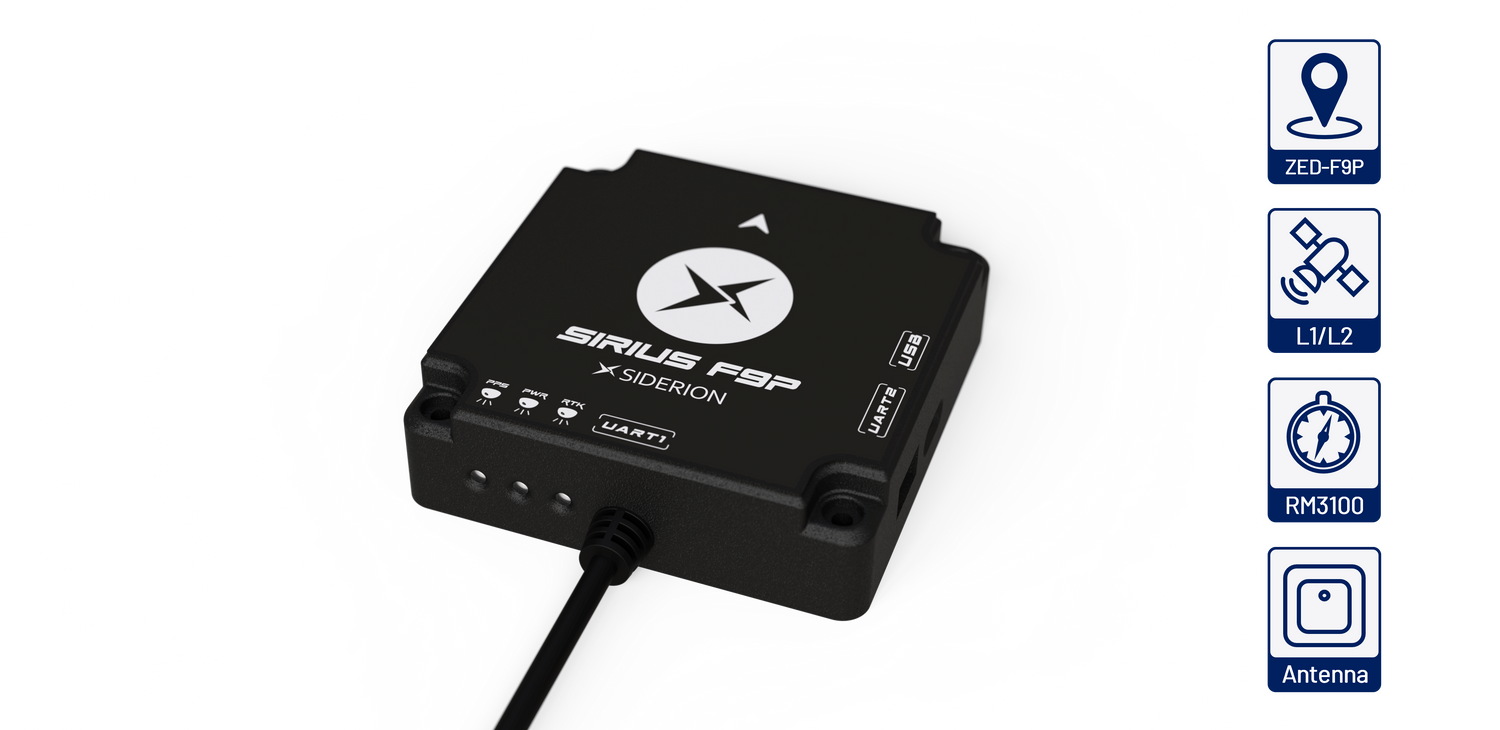

Achieve centimeter-level accuracy with the best-selling Sirius F9P rover (since 2019).
An all-in-one, dual-band L1/L2 RTK GNSS device based on the u-blox ZED-F9P.
➤ RM3100 professional-grade magnetometer.
➤ Built-in high-gain L1/L2 active antenna.
➤ Built-in JST-GH chord for immediate compatibility with any flight controllers.
Ideal for UAVs, fixed-wings, robotics, and precision farming.
In stock
Pairs well with
Official Siderion resellers:
Volume discounts
- From 50 pcs = You save 10%
- From 100 pcs = You save 12.5%
- From 200 pcs = You save 15%
- From 500 pcs = You save 17.5%
Made in France
This product has been designed and manufactured in Toulouse, France.
Need help?
Can we assist you with any questions about the pricing or our product?
Sirius F9P
€249,90
High-Precision Multi-Band GNSS Module for Professional Applications
Key Features & Specifications
| Feature | Specifications |
|---|---|
| Supported constellations | GPS/SBAS -Galileo - BeiDou - QZSS - GLONASS |
| GNSS bands | L1 / L2 |
| Position accuracy | 1cm (RTK) |
| Convergence time | <10 seconds (RTK) |
| Position update rate | Up to 20Hz |
| Timepulse (PPS) | Configurable: 0.25 Hz to 10 MHz |
| Embedded Sensors | RM3100 |
| Interface | USB, 6-pinJST-GH connector |
| Correction services | NMEA - UBX binary - RTCM v3.4 - SPARTN v2.0.1 |
| Antenna type | Active antenna |
| Size | 74 x 74 x 22mm |
| Weight | 100g |
What's inside the Sirius F9P?
Why choose the Sirius F9P?
✅ Centimeter-Level Accuracy
Achieves 10mm (1cm) precision with multi-band RTK GNSS.
✅ Dual-Band L1/L2 Technology
Reduces ionospheric interference, ensuring faster convergence and superior accuracy compared to single-band GNSS receivers.
✅ Fast Convergence
Sub-10-second RTK convergence for rapid, reliable positioning.
✅ Versatile Correction Support
Compatible with RTCM, VRS, and Network RTK for flexible, high-accuracy positioning.
✅ Compact & Energy-Efficient
Perfect for OEM integration and low-voltage applications.
✅ Base or Rover Operation
Use as a standalone receiver or in a base-rover RTK configuration.
✅ Anti-Jamming & Spoofing Protection
Advanced interference suppression for secure operation in challenging environments.
✅ Plug-and-Play Compatibility
Seamlessly integrates with any autopilots via a 6-pin JST-GH connector, with support for UART, I2C, USB, and MAVLink protocols.
✅ Fast & Reliable
Up to 20 Hz update rate for real-time responsiveness in dynamic applications.
Ideal Applications
➤ Drone surveying & mapping
➤ Precision agriculture
➤ Autonomous vehicle navigation
➤ Robotics & industrial automation
➤ Aeronautical & UAV systems
Sirius F9P mechanical dimensions
