RM3100

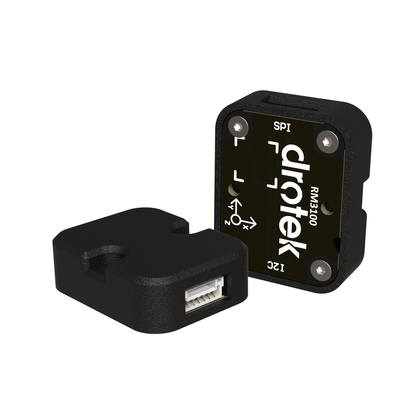

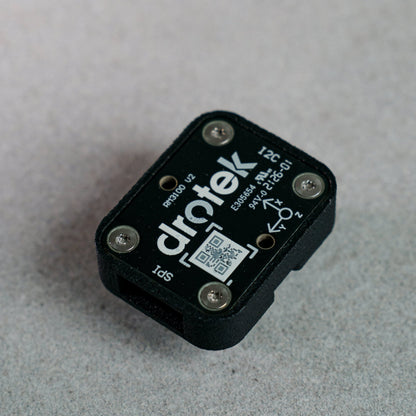

Siderion RM3100 professional magnetometer sensor on a gray background.
Siderion RM3100 professional magnetometer sensor on a gray background with its packaging box open.
RM3100
RM3100
Popular

RM3100

€42,90
tax excl.

SID-SENS-RM3100

Achieve unmatched heading precision with the professional-grade RM3100 magnetometer.
Ultra-low power, compact size, and an extensive dynamic range.

Ideal for UAVs, drones, robotics, and precision farming.

Best-selling RM3100 module on the market since 2018

On backorder ✈︎ Expected availability: July 24, 2026

Ships in 1-2 business days when in stock

Official Siderion resellers ⤵︎

RC-NETSHOP.DK ⤴

ATGROUP.STORE ⤴

MYBOTSHOP.DE ⤴

Volume discounts ⤵︎
  • From 50 pcs = You save 10%
  • From 100 pcs = You save 12.5%
  • From 200 pcs = You save 15%
  • From 500 pcs = You save 17.5%

RM3100 - Professional grade magnetometer

Optimize your drone’s navigation with the RM3100, a ready-to-use, high-performance 3-axis magnetometer designed for accurate heading and orientation in demanding environments. Powered by PNI’s magneto-inductive technology, it eliminates magnetic noise—even from motor coils and metal components—so your drone can reliably follow waypoints and maintain precise course correction.

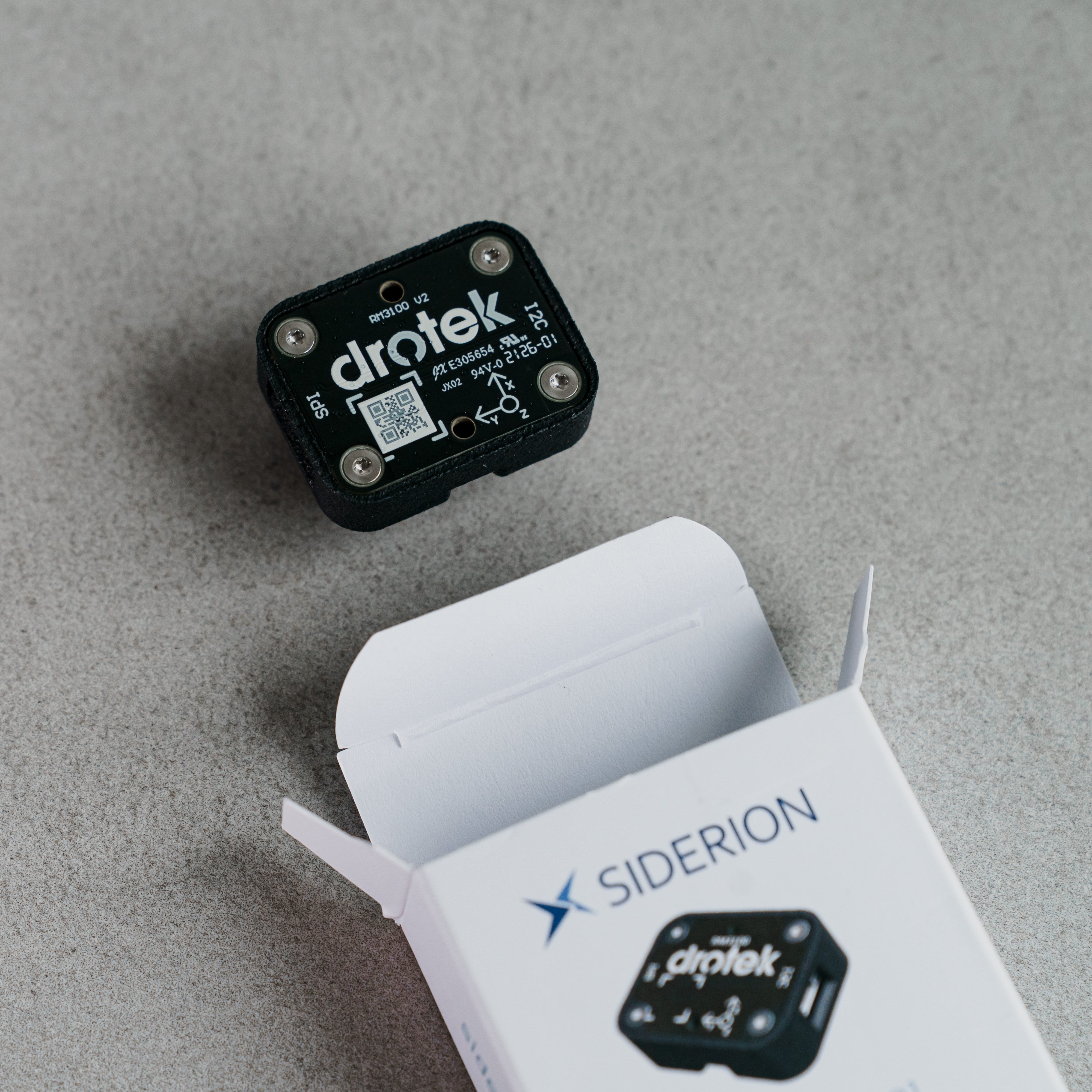

Siderion RM3100 professional magnetometer sensor on a gray background with its packaging box open. Siderion RM3100 professional magnetometer sensor on a gray background with its packaging box open.

Key Features & Specifications

Loading 3D model...
ParameterCycle counts: 50Cycle counts: 100Cycle counts: 200Units
Field Measurement Range-800 to +800-800 to +800-800 to +800µT
Gain203875LSB/µT
Sensitivity502613nT
Noise302015nT
Maximum Single-Axis Sample Rate (divide by 3 for max. 3-axis sample rate)1600850440Hz
Single-Axis Average Current @ 24 Hz Sample Rate (equivalent to 3-axis @ 8 Hz)70135260µA

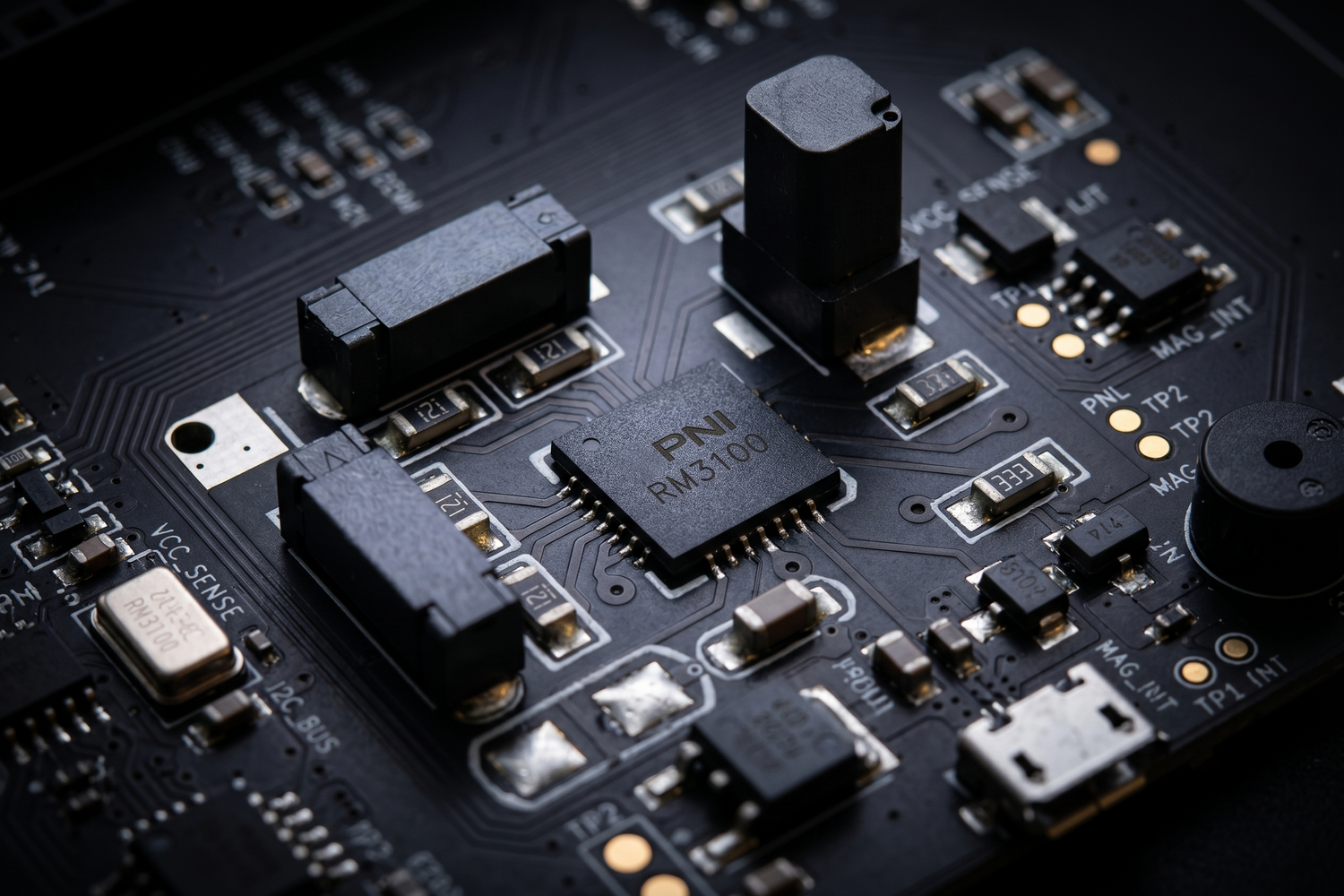

What's inside the RM3100?

Why choose the RM3100?

✅ Superior Accuracy
Over 10x better resolution and 20x lower noise than standard Hall Effect sensors, with 10 nT resolution for ultra-precise measurements.

✅ Noise-Free Performance
Delivers clean, stable magnetic field data for reliable heading reference, even in electrically noisy environments.

✅ Plug-and-Play
No temperature calibration required—operational out of the box for seamless integration.

✅ Low Power, High Efficiency
Engineered for minimal power consumption without compromising performance.

✅ Zero Hysteresis
Ensures consistent, repeatable results for critical applications.

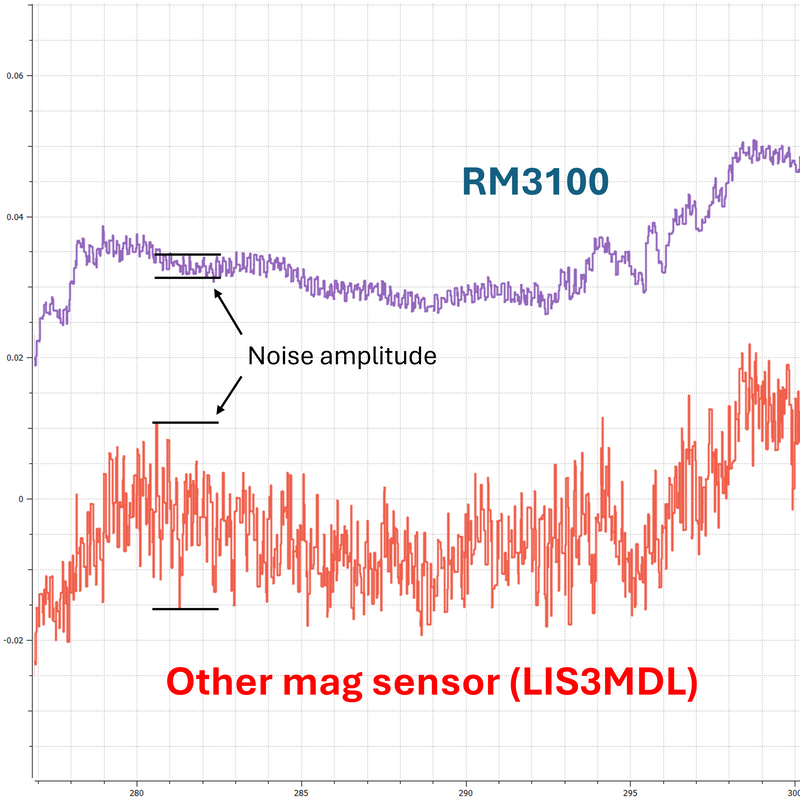

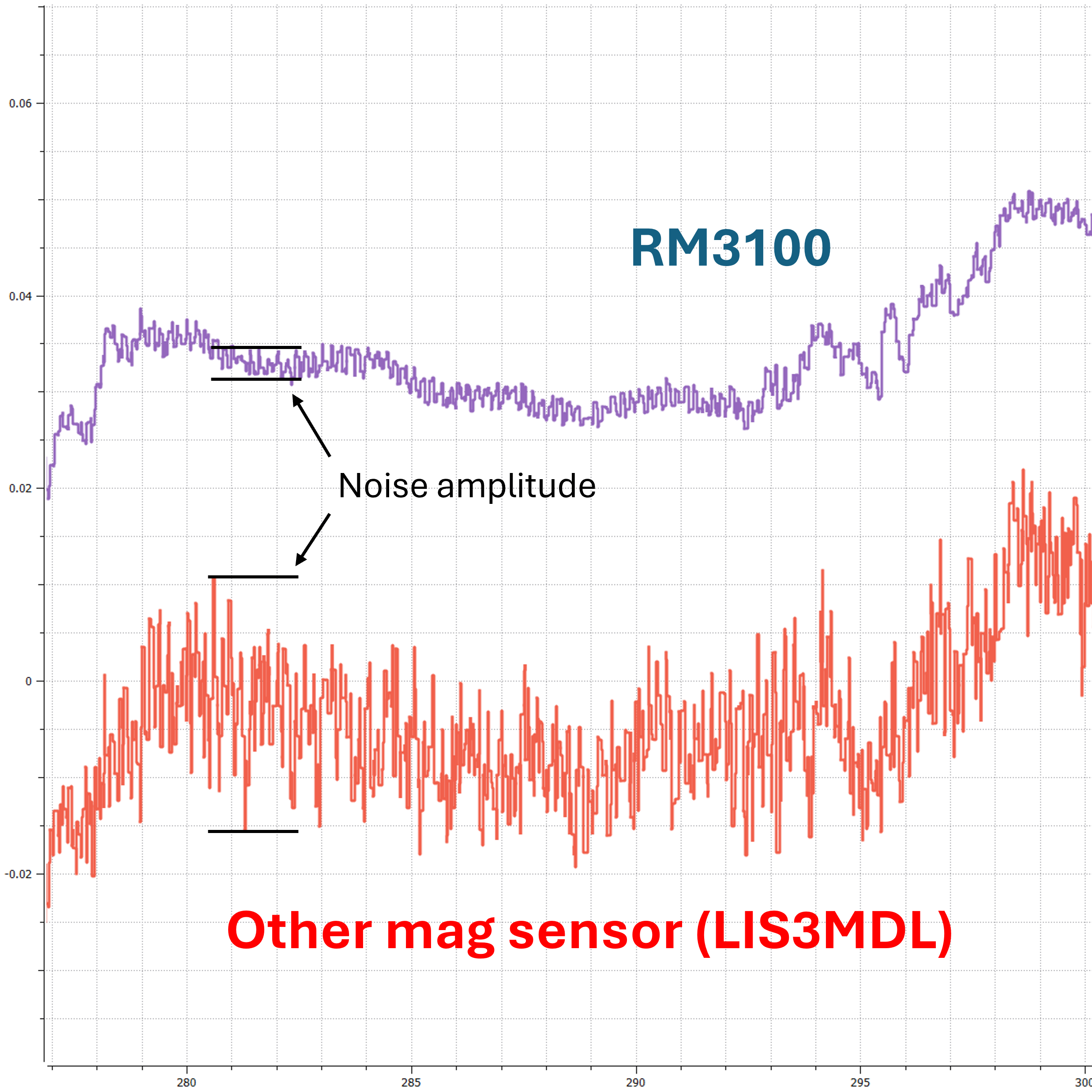

Siderion RM3100 performance comparison on a graph. Siderion RM3100 performance comparison on a graph.

Ideal Applications

➤ Drone surveying & mapping
➤ Precision agriculture
➤ Autonomous vehicle navigation
➤ Robotics & industrial automation
➤ Aeronautical & UAV systems

RM3100 mechanical dimensions

Download
