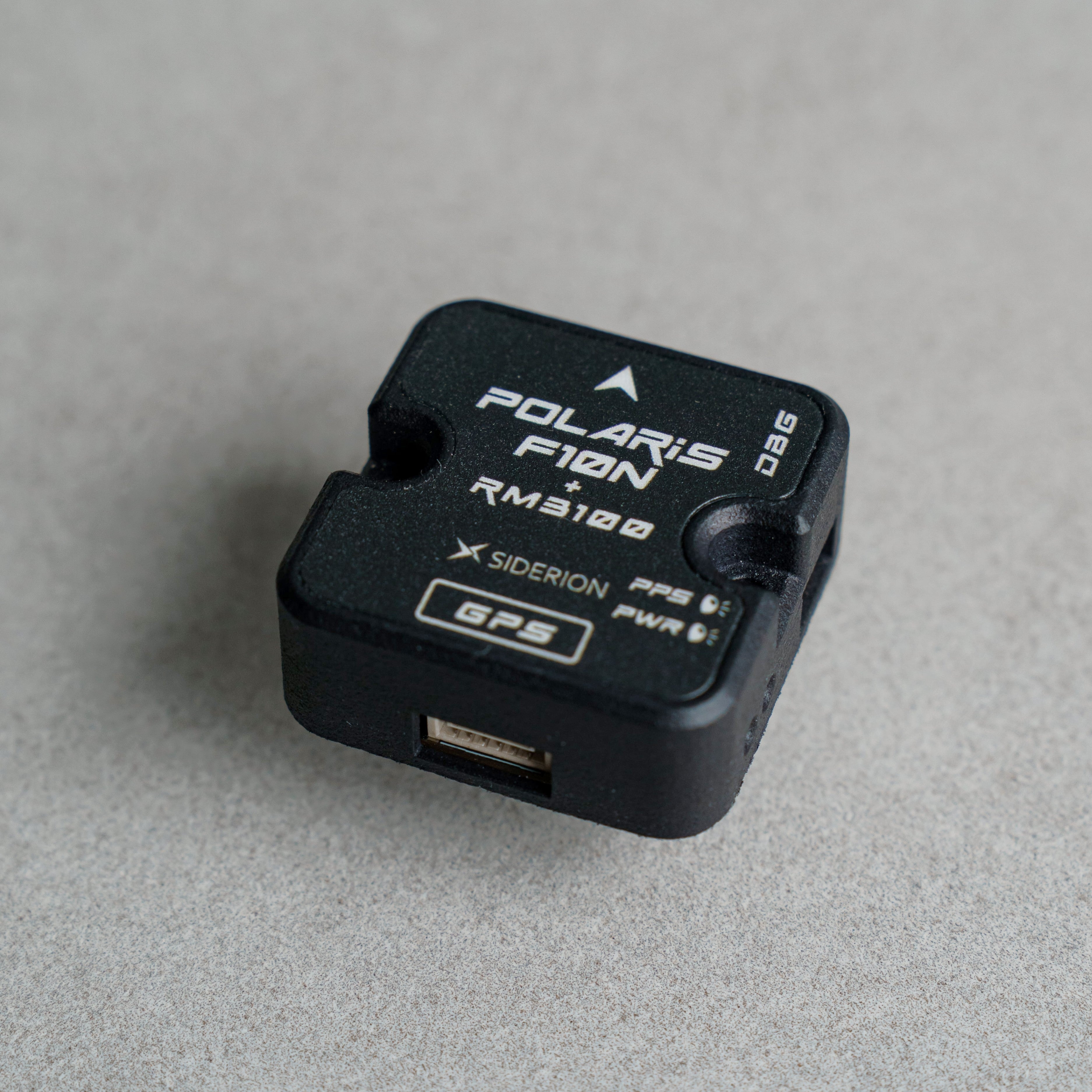

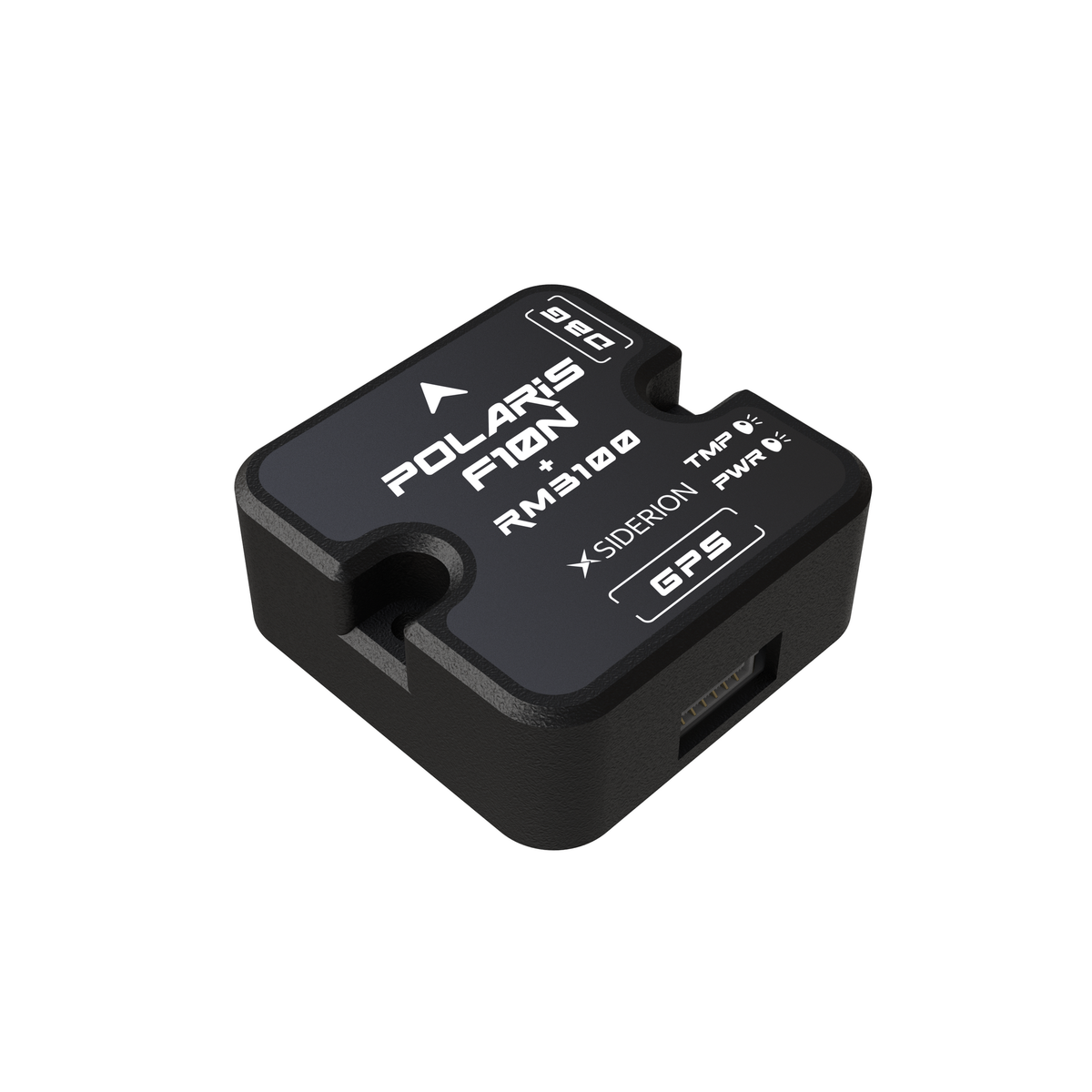

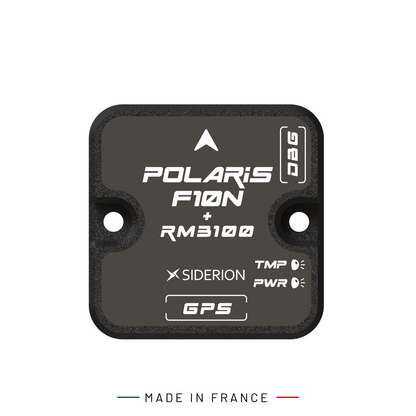

Polaris F10N
SID-GNSS-POLARIS_F10N
Achieve sub-meter accuracy with the Polaris F10N.
A lightweight dual-band L1/L5 multipath mitigation standard GNSS module.

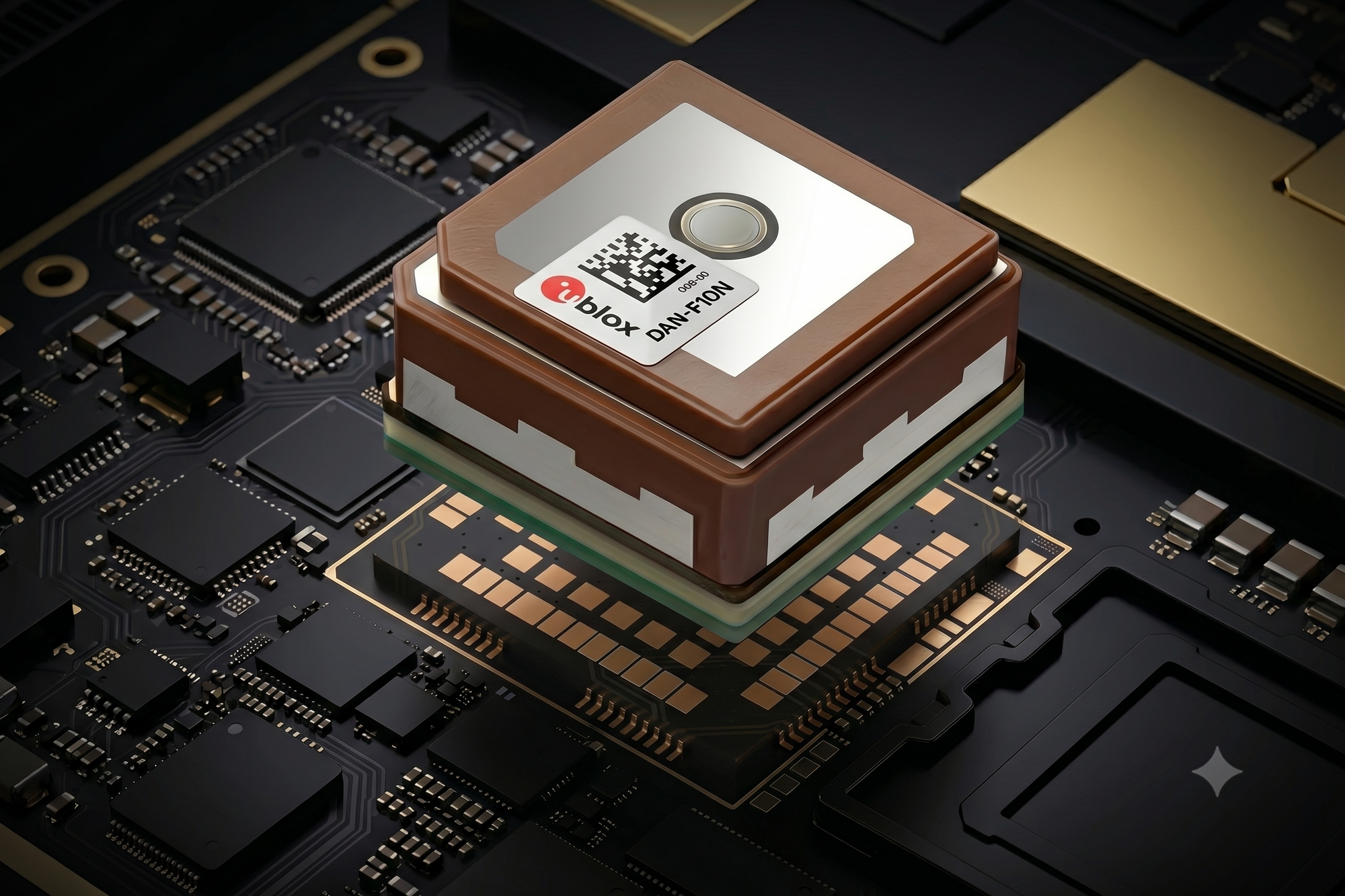

➤ u-blox DAN-F10N onboard.
➤ RM3100 professional-grade magnetometer.
➤ BMP581 high precision pressure sensor.
Ideal for UAVs, robotics, and precision farming.
Ships in 1-2 business days when in stock
Official Siderion resellers ⤵︎
Volume discounts ⤵︎
- From 50 pcs = You save 10%
- From 100 pcs = You save 12.5%
- From 200 pcs = You save 15%
- From 500 pcs = You save 17.5%
Polaris F10N
High-Precision Multi-Band Standard GNSS Module for Professional Applications
Key Features & Specifications
| Feature | Specifications |
|---|---|
| Supported constellations | GPS / QZSS -BeiDou - Galileo - NavIC |
| GNSS bands | L1 / L5 |
| Position accuracy | As good as 1m (CEP) |
| Position update rate | Up to 20Hz |
| Timepulse (PPS) | Configurable: 0.25 Hz to 10 MHz |
| Embedded Sensors | RM3100 - BMP581 |
| Interface | UART - I2C |
| Antenna type | Embedded passive patch antenna |
| Size | 38 x 38 x 15mm |
| Weight | 30g |
What's inside the Polaris F10N?

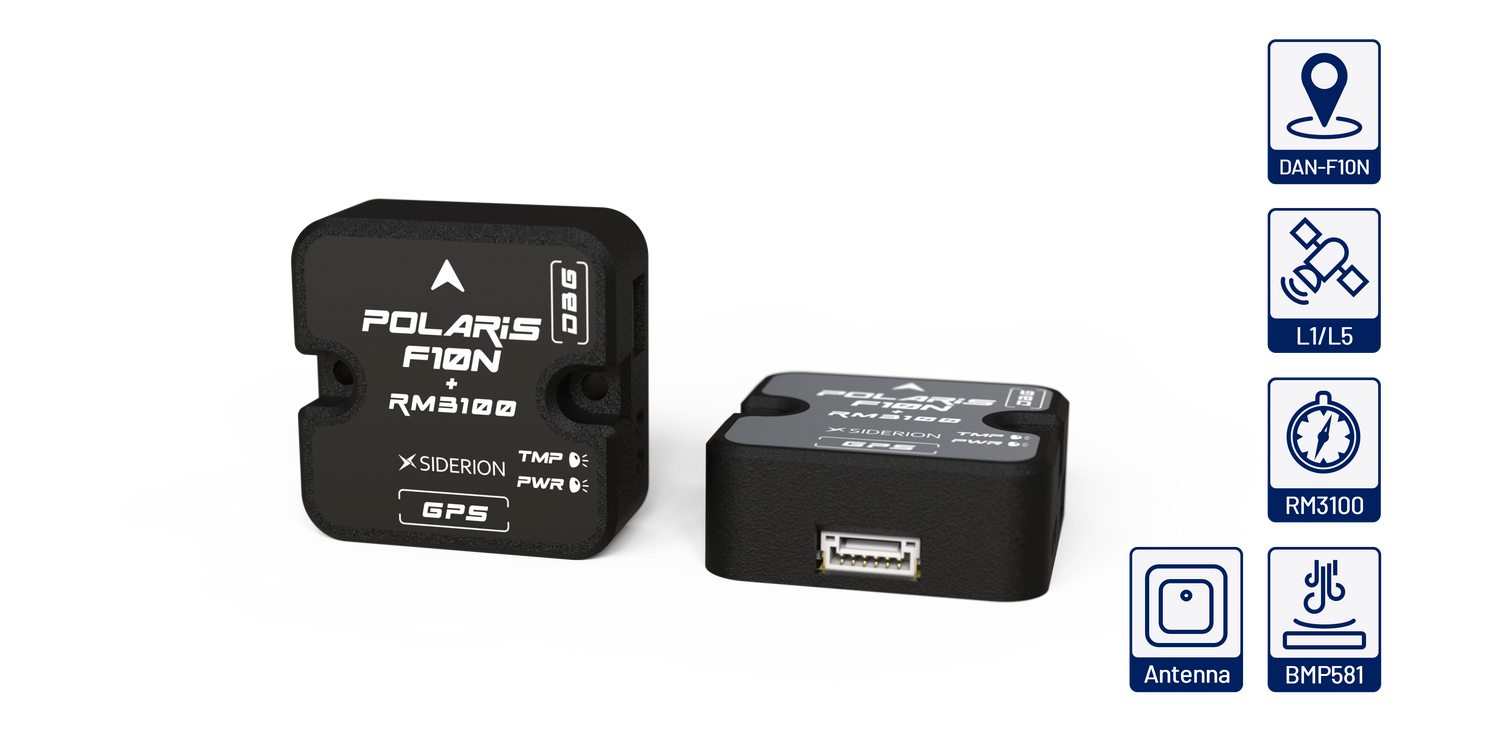

Why choose the Polaris F10N?
✅ Meter Level Accuracy
Achieves 1m precision with multi-band Standard GNSS.
✅ Dual-Band L1/L5 Technology
Reduces ionospheric interference, ensuring faster convergence and superior accuracy compared to single-band GNSS receivers.
✅ Fast Time to First Fix (TTFF)
Sub-30-second (cold start) and Sub-2-second (hot start) convergence for rapid, reliable positioning.
✅ Embedded Sensors
RM3100 professional-grade magnetometer & BMP581 barometric sensor embedded.
✅ Compact & Energy-Efficient
Perfect for integration in drones or rovers (JST-GH connectors) and low-voltage applications.
✅ Anti-Jamming Protection
Integrated SAW-LNA-SAW for exceptional out-of-band jamming immunity.
✅ Plug-and-Play Compatibility
Seamlessly integrates with any autopilots via a 6-pin JST-GH connector, with support for UART, I2C and MAVLink protocols.
✅ Fast & Reliable
Up to 20 Hz update rate (in GPS or BeiDou only mode) for real-time responsiveness in dynamic applications.
Ideal Applications
➤ Drone surveying & mapping
➤ Precision agriculture
➤ Autonomous vehicle navigation
➤ Robotics & industrial automation
➤ Aeronautical & UAV systems
Polaris F10N mechanical dimensions
