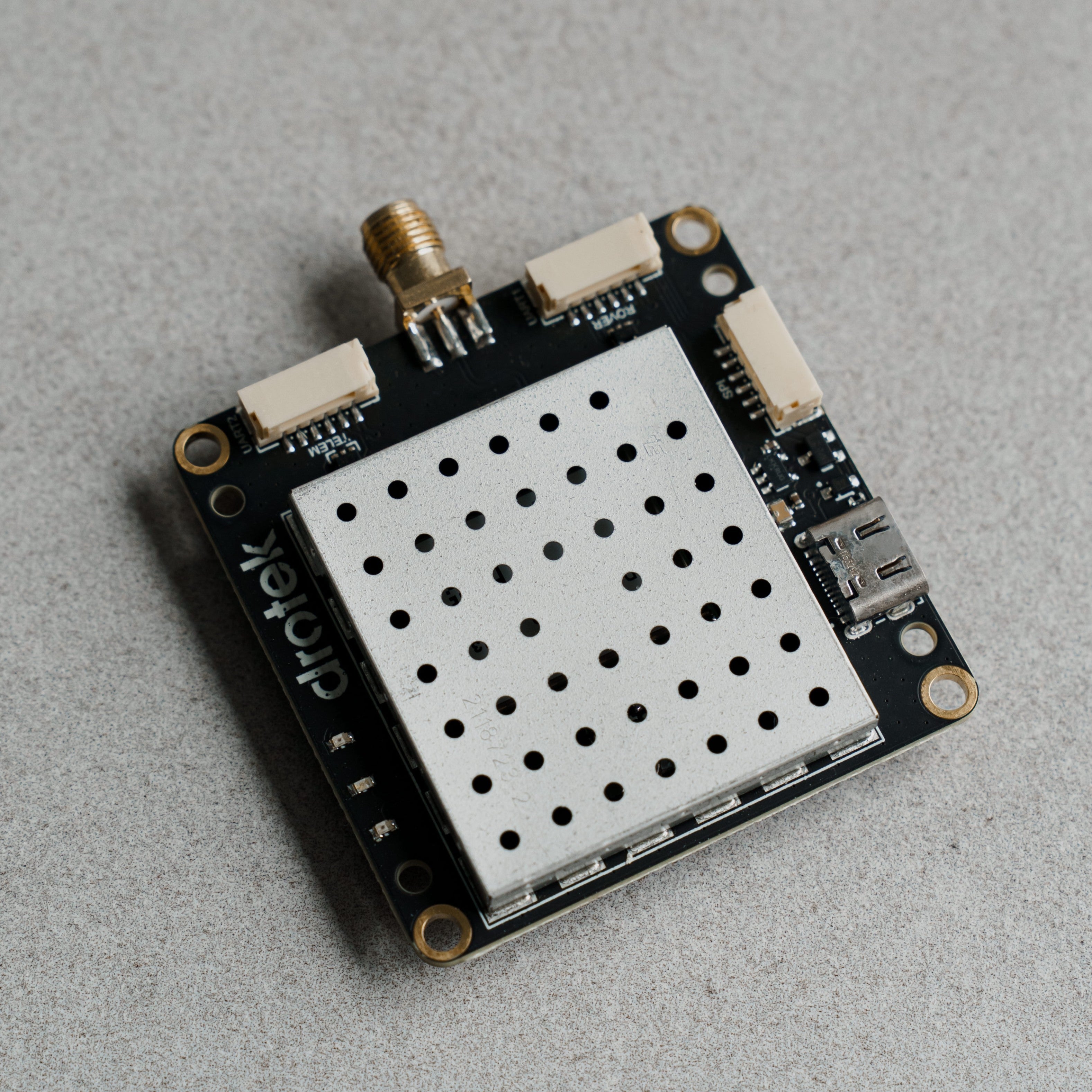

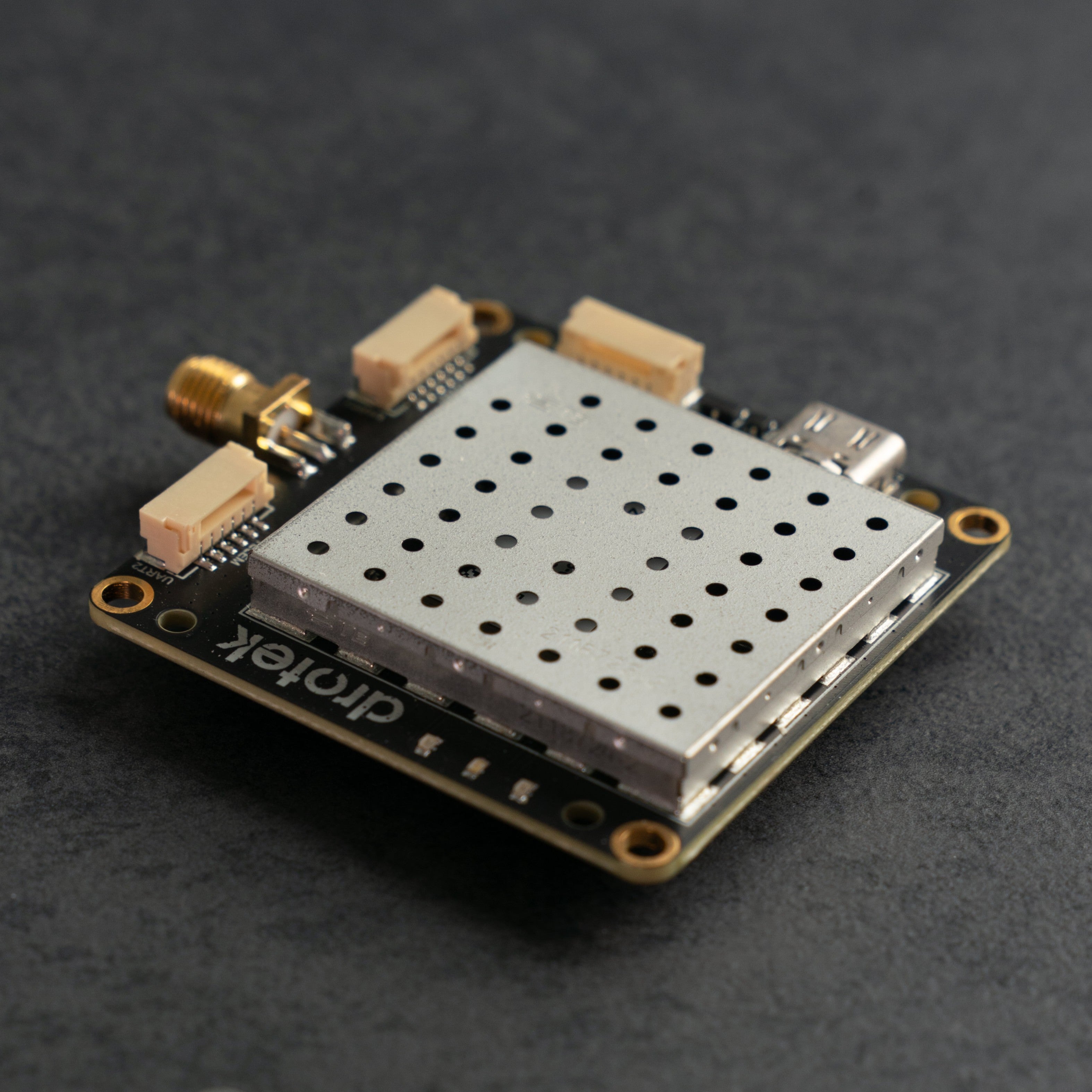

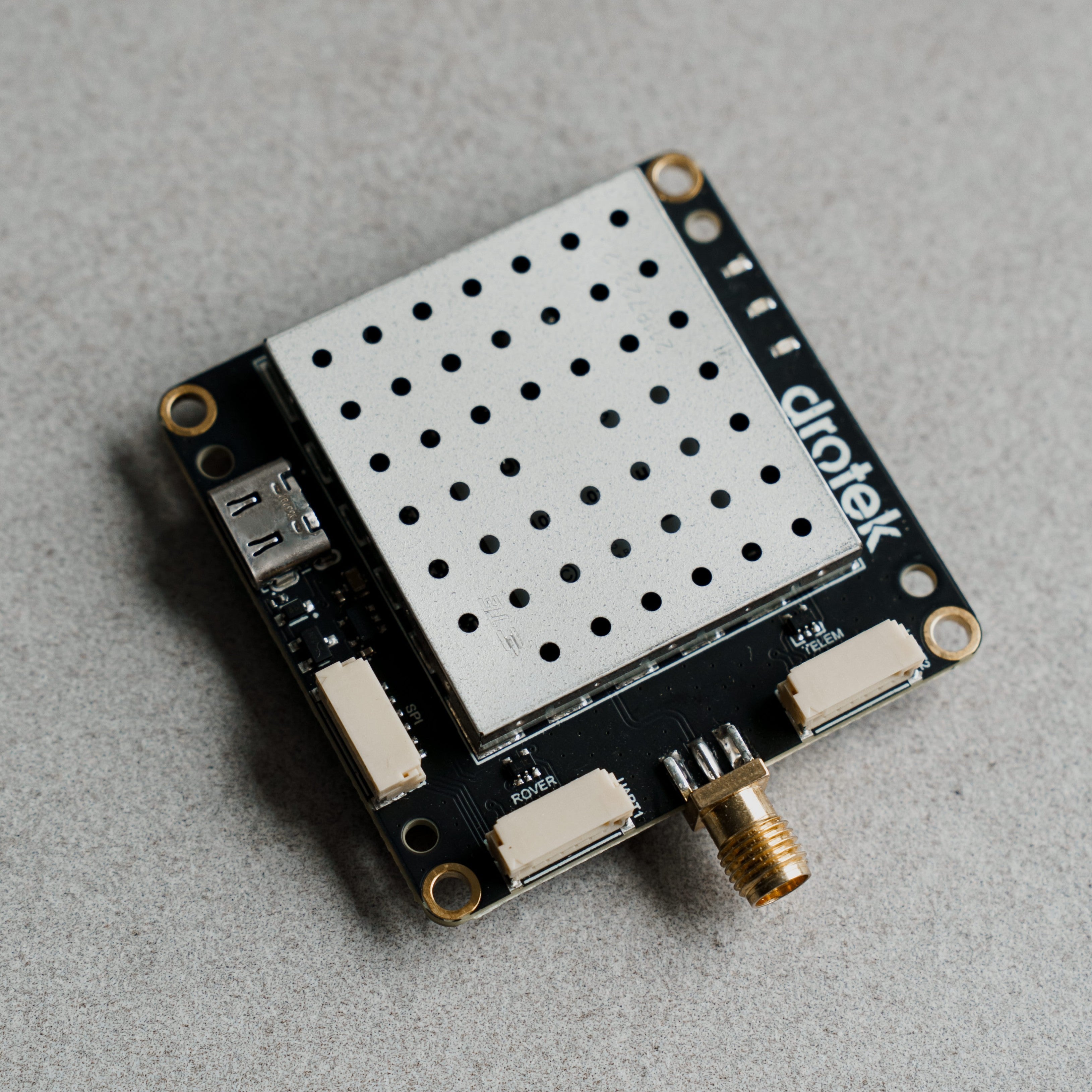

Achieve centimeter accuracy with the DP0601. A dual-band L1/L2 RTK GNSS receiver based on the u-blox ZED-F9P.
➤ SMA input connector (active GNSS antenna). ➤ USB-C & JST-GH interfaces. ➤ Compatible with Pixhawk, ArduPilot and Betaflight. ➤ OEM - Easy to integrate into any custom GNSS projects.
Ideal for UAVs, drones, robotics, and precision farming.
What positioning accuracy does the DP0601 achieve? When operated in RTK mode with active corrections, the DP0601 delivers centimeter-level precision (1 cm horizontal, 2 cm vertical) within seconds.
Can the DP0601 be used as both a Base and a Rover?
Yes. The module supports flexible roles and can function as a mobile rover receiving RTK corrections, or as a stationary base station broadcasting correction data.
How do I connect the DP0601 to my autopilot or flight controller? It provides plug-and-play integration using standard 6-pin JST-GH connectors via UART or SPI, fully compatible with Pixhawk, ArduPilot and Betaflight platforms.
How do I configure and update the module settings? You can easily configure parameters, monitor satellite signals, or log raw data by connecting the onboard USB-C port to a PC running u-blox u-center or u-center 2 software ➜ u-center | u-blox

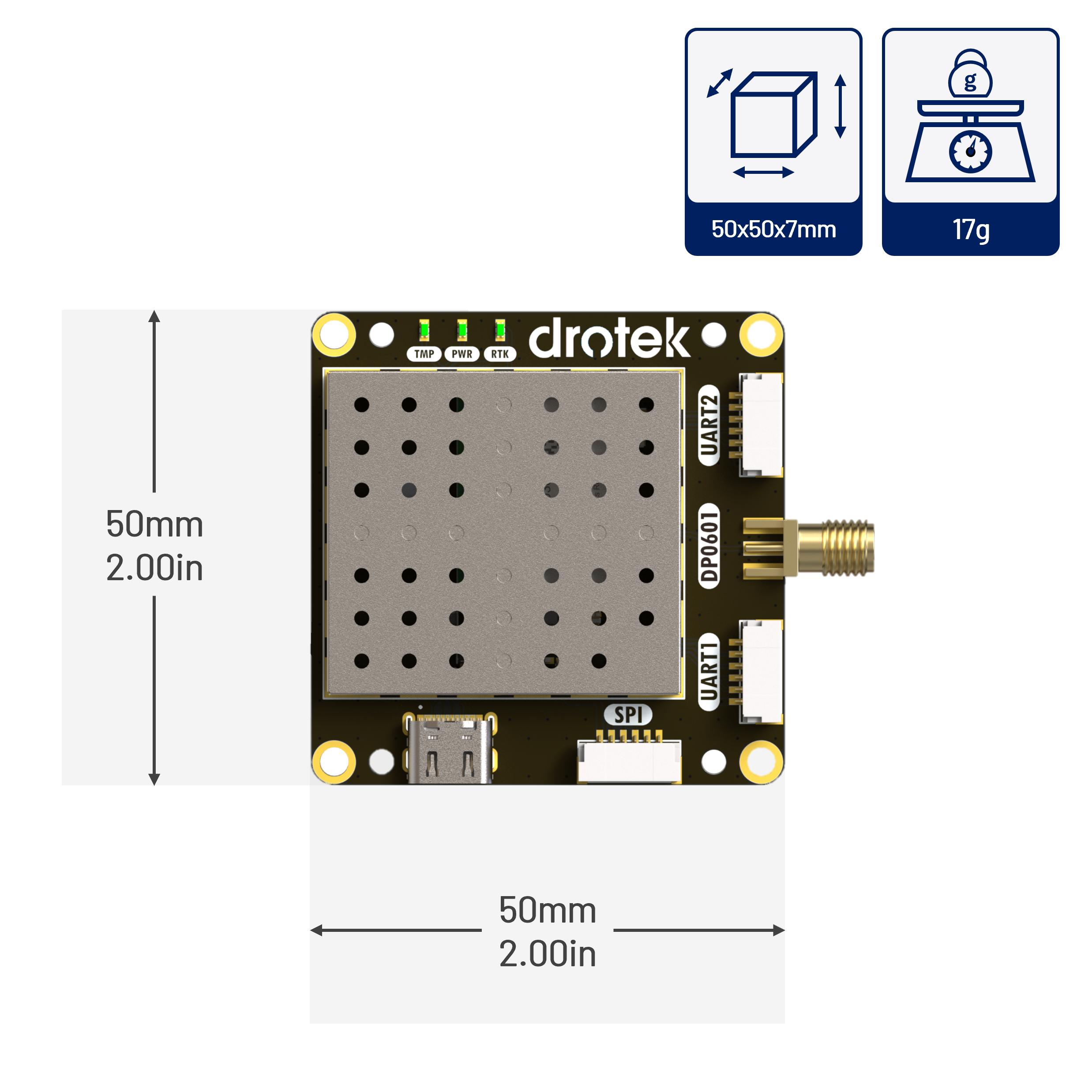

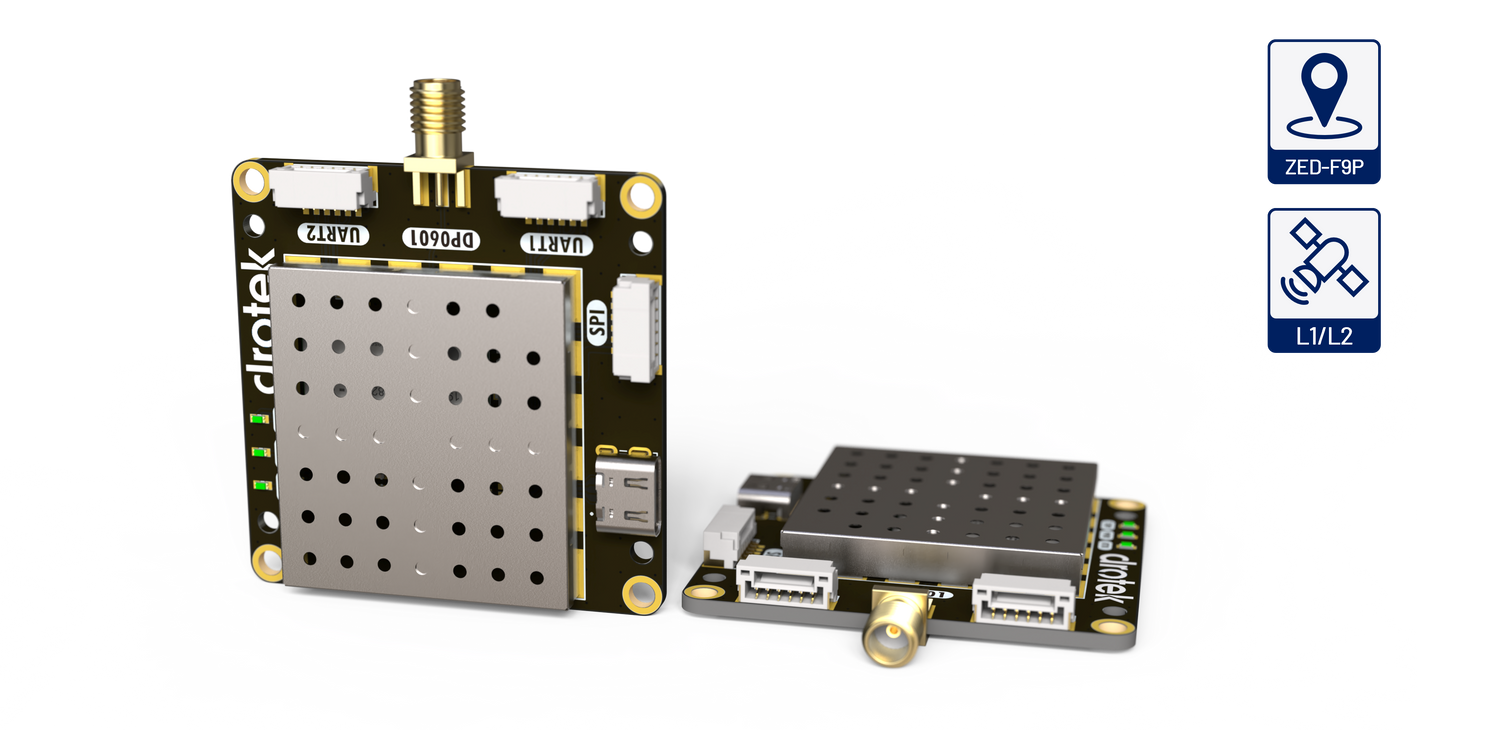

DP0601 overview
Enjoy centimeter-level precision, fast convergence times and high update rate for highly dynamic applications.
Get all major constellations reception (GPS, GLONASS, Galileo , BeiDou, plus QZSS reception) owing to its multi-band RF front-end architecture.
➤ Increases precision performance in difficult environments by leveraging a greater diversity of GNSS signals.
➤ Supports a variety of modern correction service technologies (RTCM v 3.x, SSR, PPP).
➤ Integrates advanced jamming and spoofing detection to achieve highest levels of security.
The DP0601 supports 184 channels for concurrent multi-constellation tracking.
Centimeter-Level Accuracy
Achieves 10mm (1cm) precision with multi-band RTK GNSS.
Dual-Band L1/L2 Technology
Reduces ionospheric interference, ensuring faster convergence and superior accuracy compared to single-band GNSS receivers.
Fast Convergence Sub-10-second RTK convergence for rapid, reliable positioning.
Versatile Correction Support Compatible with RTCM, VRS, and Network RTK for flexible, high-accuracy positioning.
Compact & Energy-Efficient Perfect for OEM integration and low-voltage applications.
Base or Rover Operation Use as a standalone receiver or in a base-rover RTK configuration.
Anti-Jamming & Spoofing Protection Advanced interference suppression for secure operation in challenging environments.

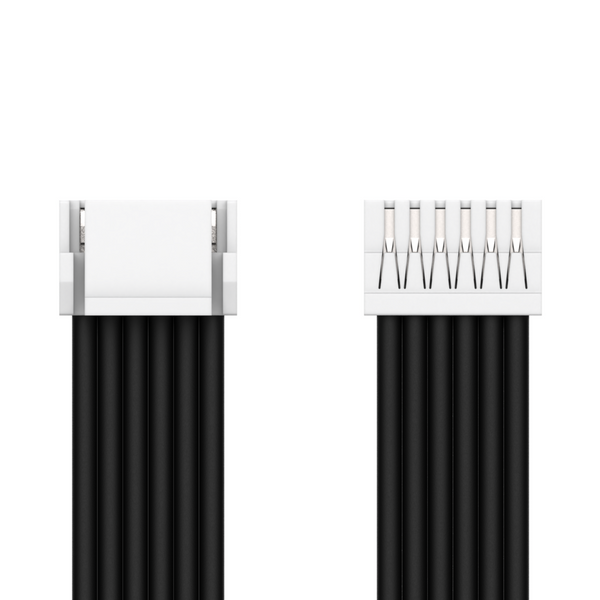

Plug-and-Play Compatibility Seamlessly integrates with any autopilots via a 6-pin JST-GH connector, with support for UART, I2C, USB, and MAVLink protocols.
Fast & Reliable Up to 20 Hz update rate for real-time responsiveness in dynamic applications.
It took a bit to figure out baudrate setting for px4 but once set it works fine. 4 stars cause manual could be detailed
B
Ben v.
Solid hardware
Small footprint for xl board. Fix holds solid even under light canopy.
G
Giles T.
Used for base station setup
Configured as fixed base station with survey-in. Sends RTCM3 stream to 3 rovers flawlessly.
A
Artem P.
Arrived fast work as expected
The package arrived in 3 days. I connected it to a raspberry pi via usb-c serial bridge and pyubx2 reads frames smooth.
S
Stefan B.
Good price for genuine f9p
Original ublox chip not fake. fast shipping to Germany, overall very satisfied with siderion service
C
Carlos E.S.
Replaced old gps module
Much better signal strength L1/L2 multi constellation is night and day compared to single band.
C
Callum O.
rtk fix is spot on
Tested with local ntrip caster. Getting 1cm accuracy effortlessly and board stays cool during long survey missions. great!!
M
Mateusz K.
Cable came a bit tight fit
I think the board itself is top notch rtk performance. But connector was super tight had to be careful not to tear wires. Otherwise 5 stars
H
Hiroshi T.
Very fast fix speed
using it for photogrammetry drone layout. 20Hz update works without dropping packets and very steady signal even near tree line.
D
Dave K.
all good
Delivered quickly to Australia. The DP0601 is plugged in via uart and mission planner detected the zed-f9p right away.
rtk status went from float to fix in seconds.
L
Lars L.
Nice upgrade from Drotek old boards
Been buying drotek for years now under siderion name. Dp0601 xl form factor is easy to mount. ZERO complaints.
E
ELDAN Z.
Thanks
Thanks
S
Siddharth R.
Super precise positionning
We use dp0601 on agricultural robotics platform. After a few seconds, centimetric precision is achieved
J
Jean-Luc P.
Good module but pinout needed double check
Hardware is very good, RTK fix solid. baseline test at 15km gave good results. minus one star because documentation for headers was a bit confusing at first.
A
Alejandro M.
works great with pixhawk and mission planner
Replaced my old neo-m8p with dp0601. accuracy is down to 1-2cm with base station feed. really impressed with siderion quality
M
Markus W.
solid f9p board
Got this for a custom rover build. f9p lock is super fast under 10s usually. solder joints look clean.
J
Jody
Good job.
Best product that we have used in our robot application!
