SP0701
SP0701
SP0701

SID-GNSS-RTK-SP0701

SP0701

€189,90

Tax exclusive

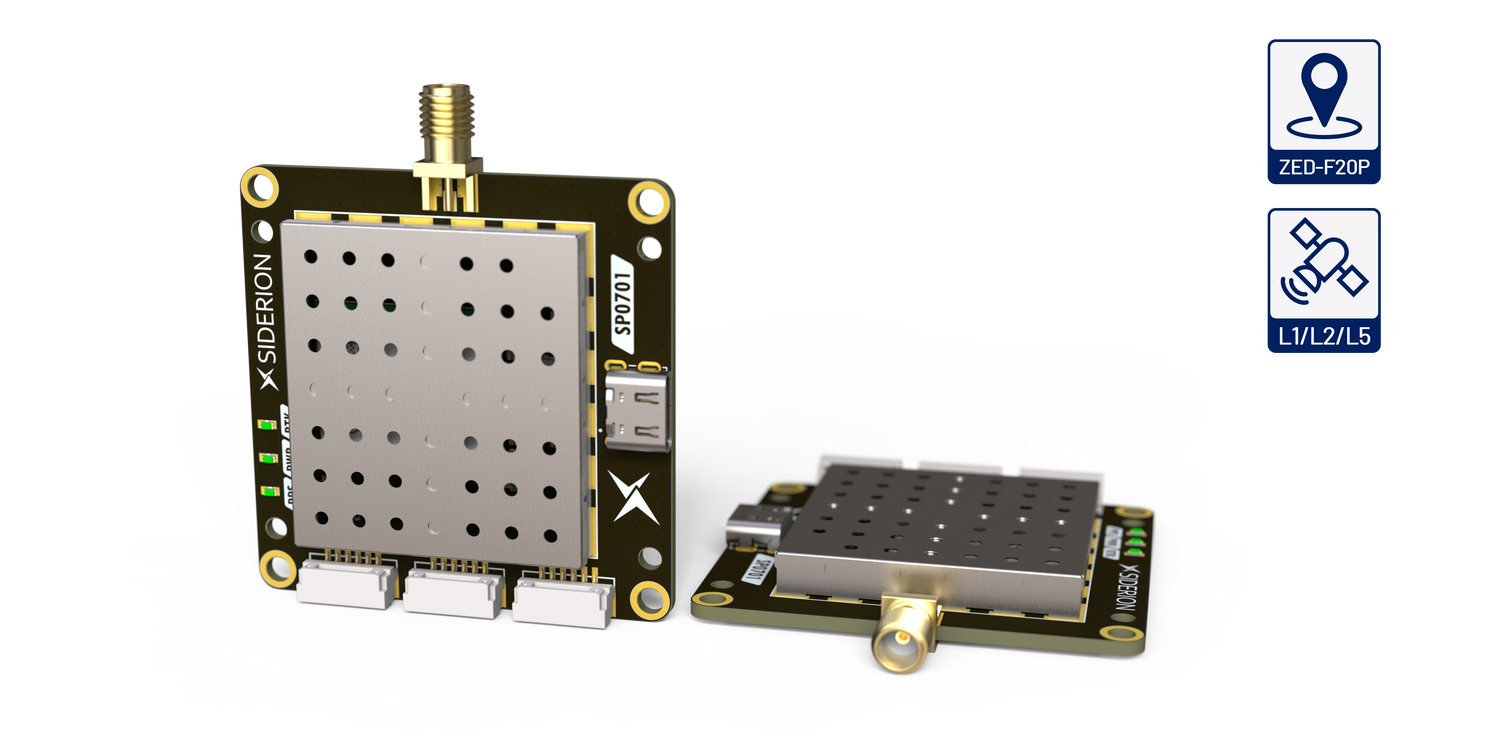

Triple-band L1/L2/L5 ZED-F20P GNSS RTK module.

재고 있음, 배송 준비 완료

Pairs well with
Official Siderion resellers:

RC-NETSHOP.DK ⤴

Volume discounts
  • From 50 pcs = You save 10%
  • From 100 pcs = You save 12.5%
  • From 200 pcs = You save 15%
  • From 500 pcs = You save 17.5%
Made in France

This product has been designed and manufactured in Toulouse, France.

More info

Need help?

Can we assist you with any questions about the pricing or our product?

Contact us

High-Precision Multi-Band GNSS Module for Professional Applications

Elevate your projects with the SP0701, a high-performance, multi-band GNSS module powered by the u-blox ZED-F20P chipset. Designed for sub-centimeter-level accuracy, this module supports RTK, PPP, and PPP-RTK, making it ideal for drone navigation, industrial automation, and precision agriculture.Its compact form factor and low-voltage operation (<5V) ensure seamless integration into custom PCBs, drones, and autonomous systems.

Key Features & Specifications

FeatureSpecifications
Supported constellations GPS/SBAS -Galileo - BeiDou - QZSS - GLONASS - NavIC
GNSS bands L1 / L2 / L5
Position accuracy 0.6mm (RTK)
Convergence time <7 seconds (RTK)
Position update rate Up to 25Hz
Timepulse (PPS) Configurable: 0.25 Hz to 10 MHz
Embedded Sensors None
Interface USB, UART, I2C/SPI, GPS
Correction services NMEA v4.11 - UBX binary - RTCM v3.4 - SPARTN v2.0.2
Antenna type Active Antenna

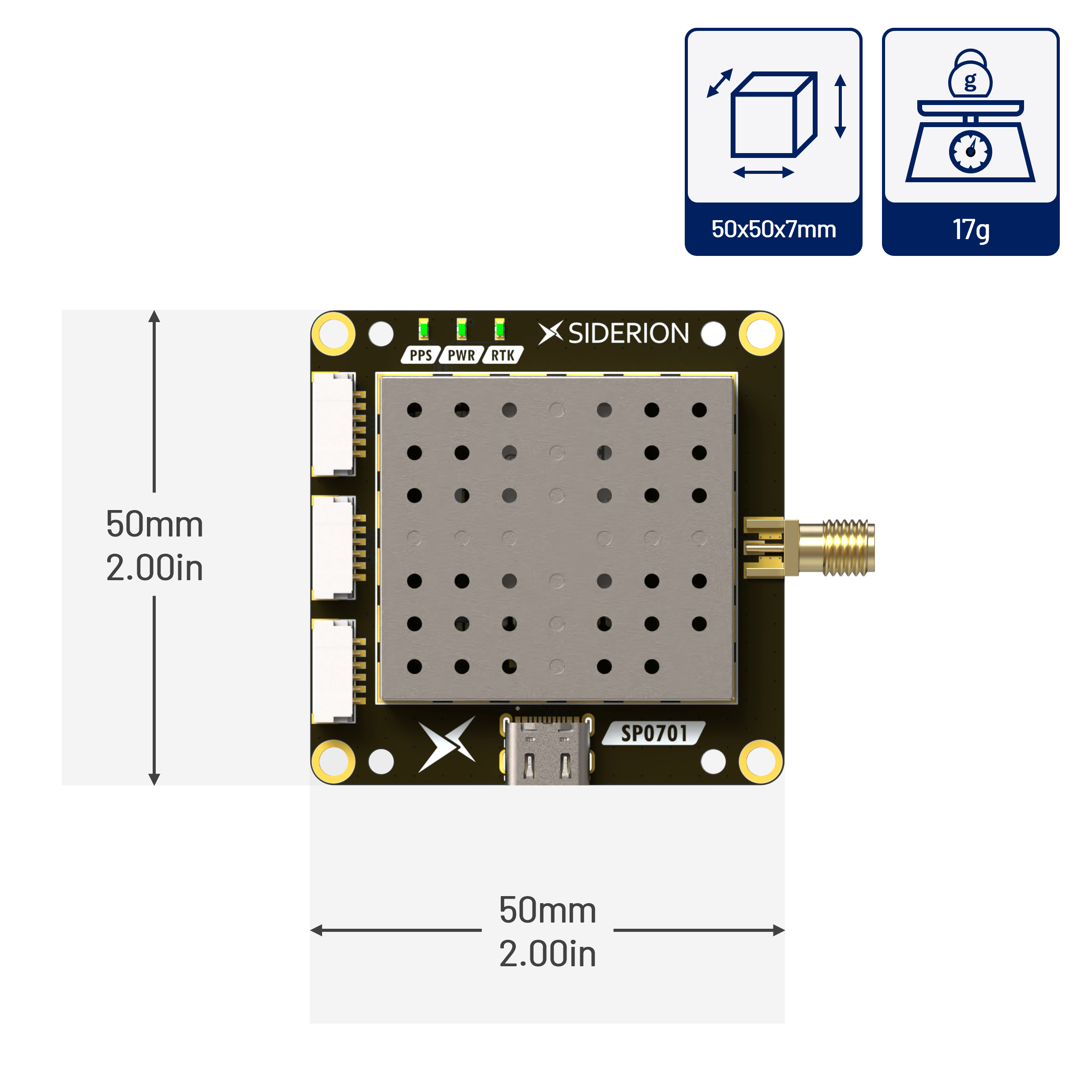

Size 50 x 50 x 17mm
Weight 17g

What's inside the SP0701?

Why choose the SP0701?

✅ Centimeter-Level Accuracy
Achieves 10mm (1cm) precision with multi-band RTK GNSS.

✅ Dual-Band L1/L2 Technology
Reduces ionospheric interference, ensuring faster convergence and superior accuracy compared to single-band GNSS receivers.

✅ Fast Convergence
Sub-10-second RTK convergence for rapid, reliable positioning.

✅ Versatile Correction Support
Compatible with RTCM, VRS, and Network RTK for flexible, high-accuracy positioning.

✅ Compact & Energy-Efficient
Perfect for OEM integration and low-voltage applications.

✅ Base or Rover Operation
Use as a standalone receiver or in a base-rover RTK configuration.

✅ Anti-Jamming & Spoofing Protection
Advanced interference suppression for secure operation in challenging environments.

✅ Plug-and-Play Compatibility
Seamlessly integrates with any autopilots via a 6-pin JST-GH connector, with support for UART, I2C, USB, and MAVLink protocols.

✅ Fast & Reliable
Up to 20 Hz update rate for real-time responsiveness in dynamic applications.

Ideal Applications

➤ Drone surveying & mapping
➤ Precision agriculture
➤ Autonomous vehicle navigation
➤ Robotics & industrial automation
➤ Aeronautical & UAV systems

SP0701 mechanical dimensions
