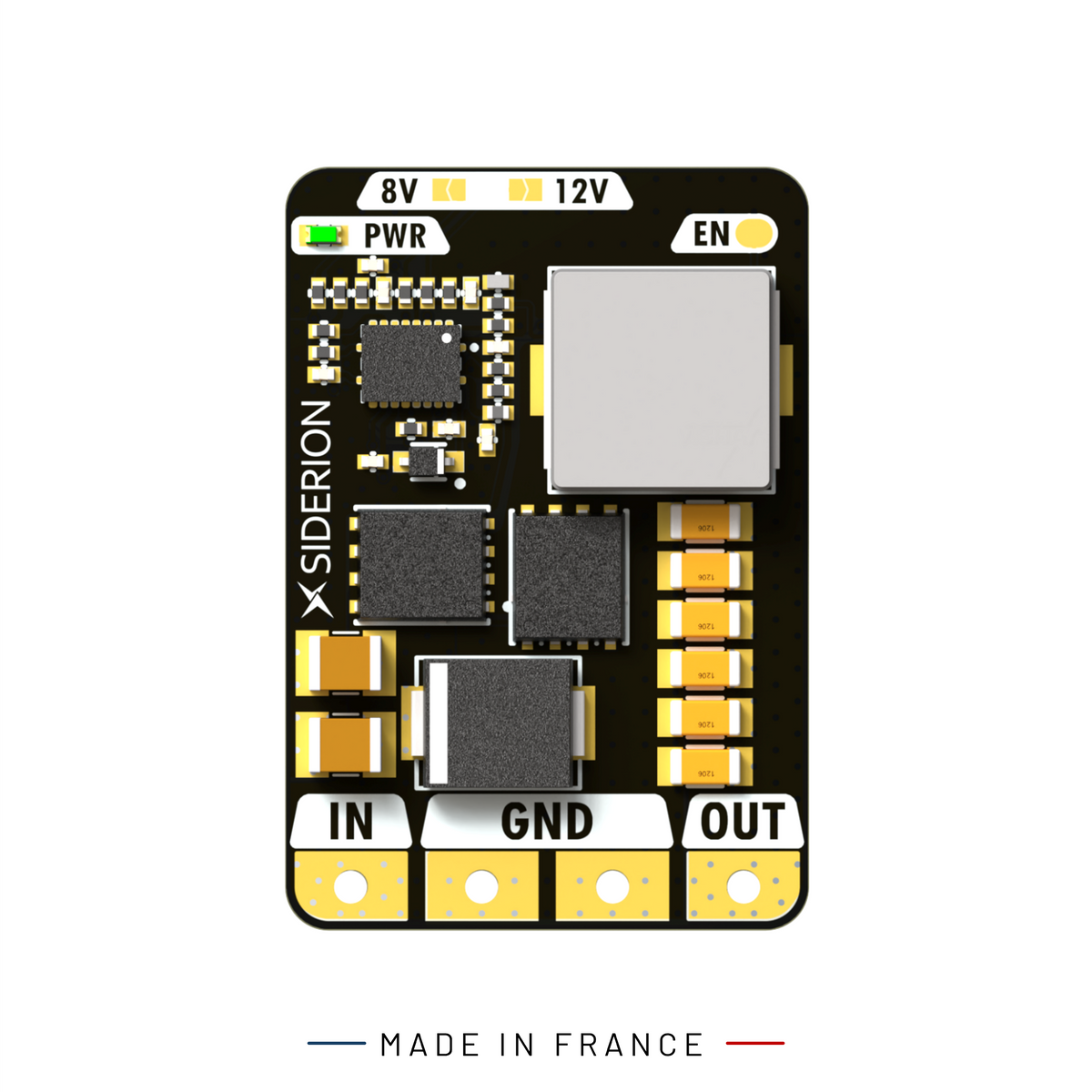

A Siderion BEC12S-5A power module with a black PCB, gold-plated connectors, and various electronic components, shown on a white background with 'MADE IN FRANCE' text below.

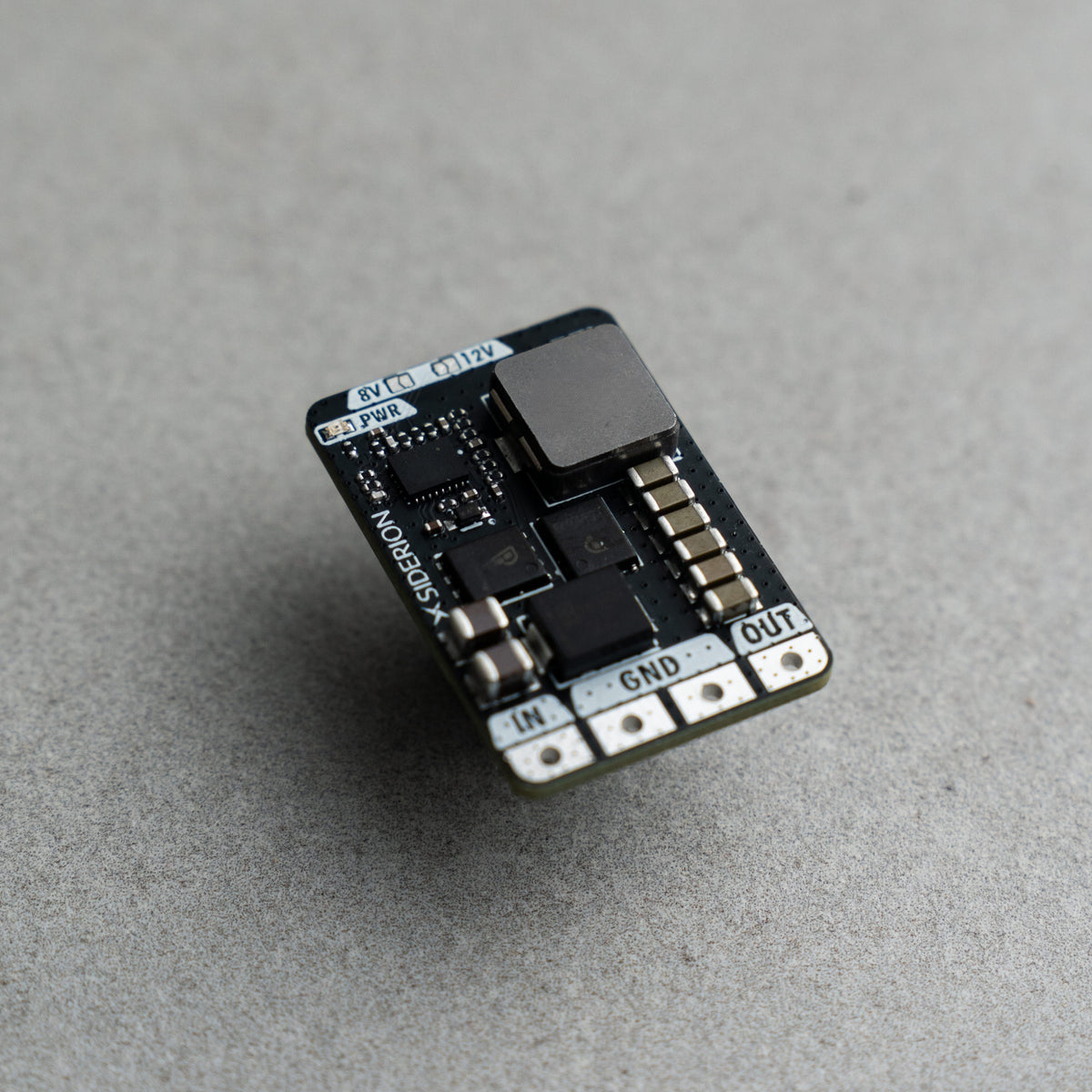

A small electronic circuit board module with a black PCB, a large black inductor, and silver terminal pads labeled IN, GND, and OUT, photographed on a textured gray surface.

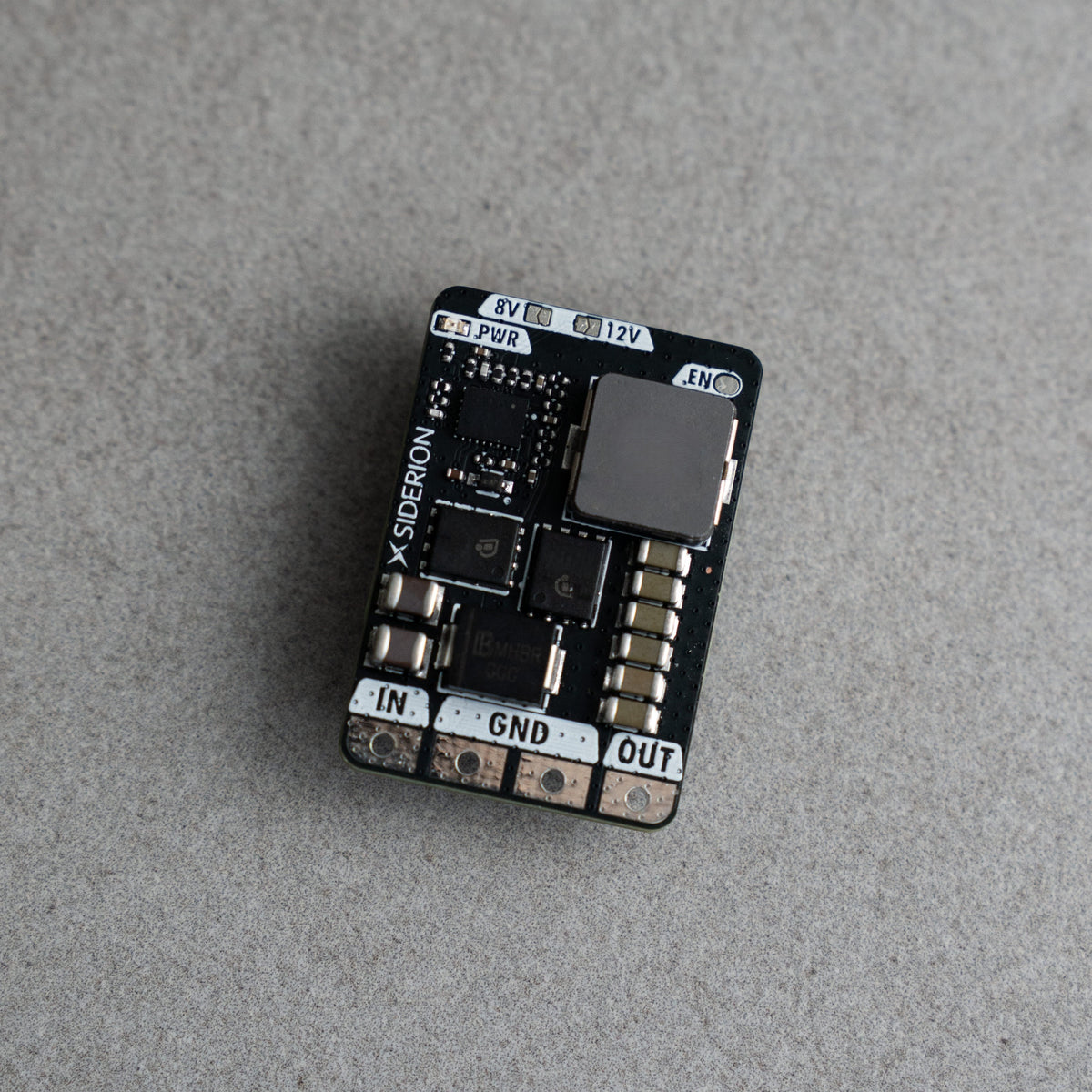

A small black electronic circuit board module with various electronic components, labeled with input/output terminals IN, GND, and OUT, resting on a textured gray surface.

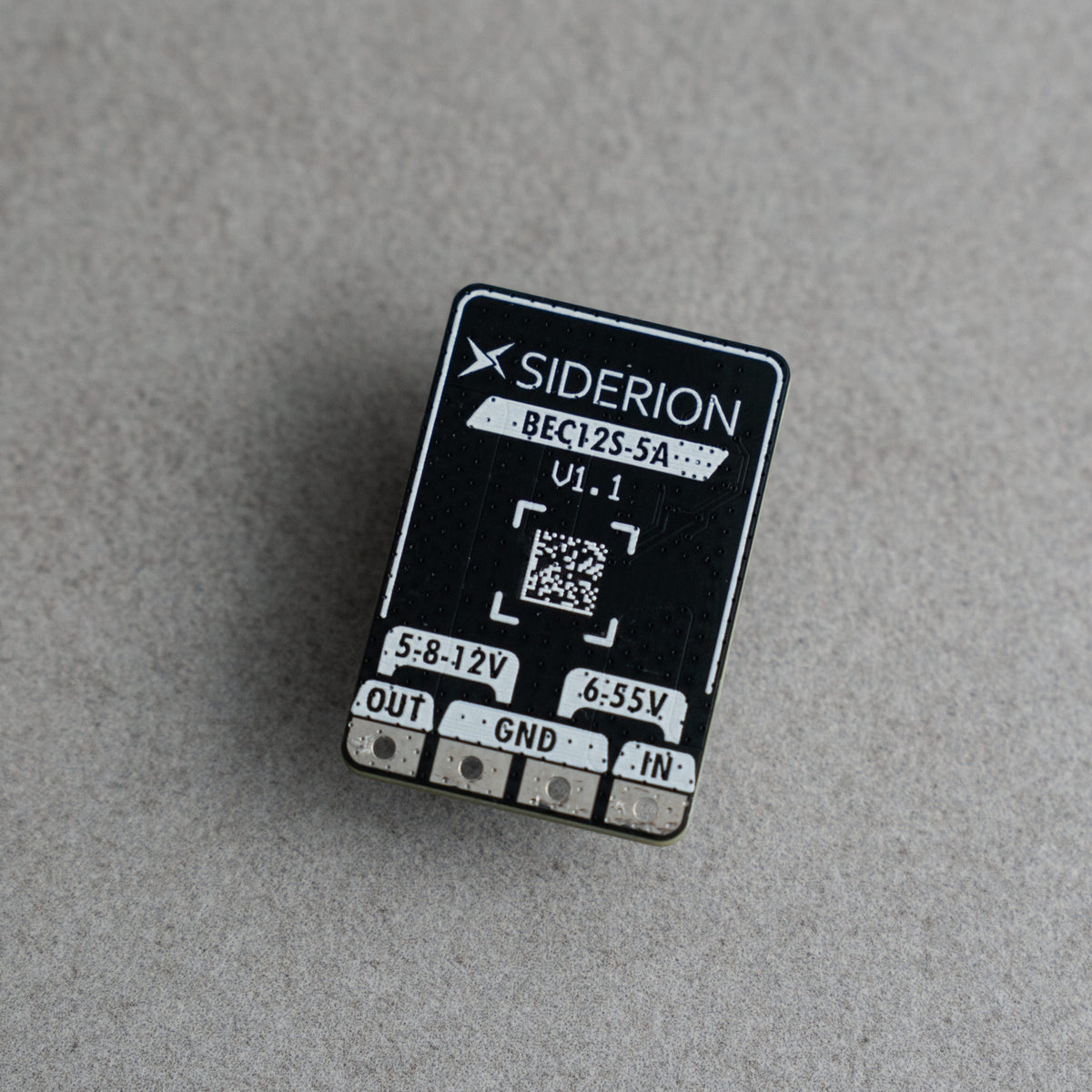

A small black electronic component with white printed text and silver metal pins, photographed on a textured light gray surface. The brand name SIDERION is clearly visible on the top surface.
BEC12S-5A

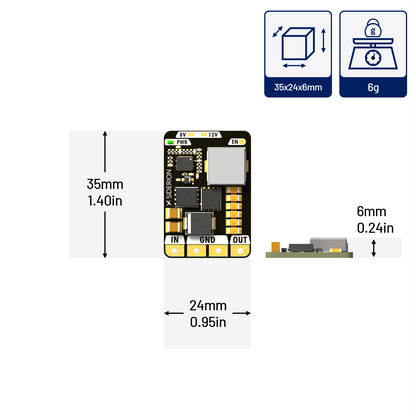

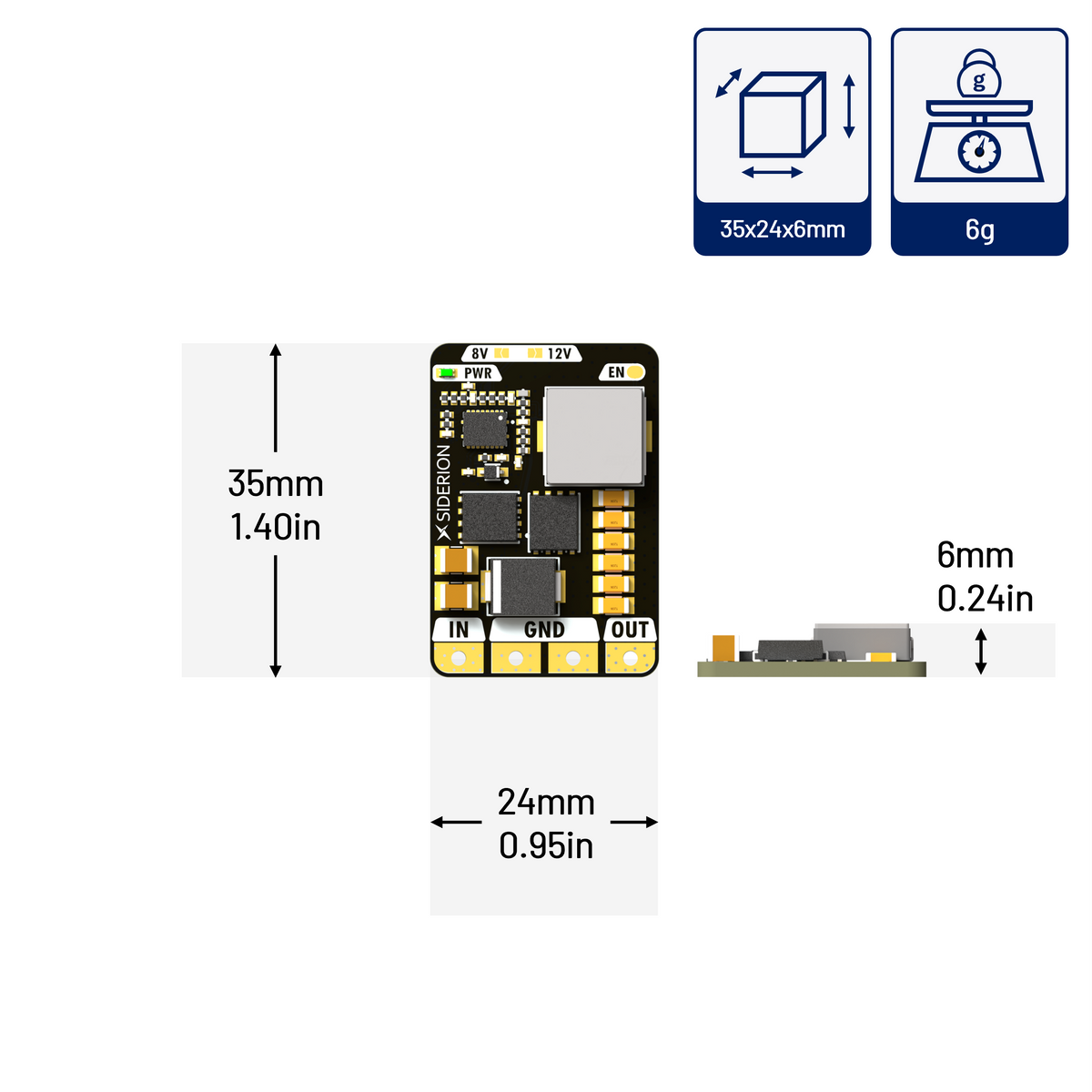

Technical dimension diagram of a small electronic circuit board module, showing overall measurements of 35mm by 24mm, a side profile of 6mm, and a weight of 6g, with icon callouts for size and weight.
NOUVEAU

BEC12S-5A

€19,90
hors taxes

SID-PWR-BEC12S_5A

Sur commande ✈︎ Disponible à partir du : 30 octobre 2026
High-efficiency 3S–12S step-down regulator delivering clean, low-noise power for drones, UAVs, FPVs and heavy-lift drones.

High-efficiency 3S–12S step-down regulator delivering clean, low-noise power for drones, UAVs, FPVs and heavy-lift drones.

Ships in 1-2 business days when in stock

Ships in 1-2 business days when in stock

Pairs well with
Official Siderion resellers ⤵︎

Volume discounts ⤵︎
  • From 50 pcs = You save 10%
  • From 100 pcs = You save 12.5%
  • From 200 pcs = You save 15%
  • From 500 pcs = You save 17.5%
Need help?

Can we assist you with any questions about the pricing or our product?

Contact us

Made in France

Secure payments

Worldwide delivery

24/7 Support

BEC12S-5A

High-efficiency 3S–12S step-down regulator delivering clean, low-noise power for drones, UAVs, FPVs and heavy-lift drones.

Clean, regulated power for your flight controller, servos, VTX, and onboard electronics directly from your main flight pack. Engineered with high-efficiency switching technology to prevent brownouts and deliver interference-free video feeds on demanding FPV, cinelifter, and long-range UAV builds.

➤ 12S LiPo Compatible: Supports wide 3S to 12S input range (9V–50.4V).
➤ 5A Continuous Output: Reliable power delivery with up to 5A peak capability.
➤ Multi-Voltage Output: Selectable 5V, 8V, or 12V voltage output.
➤ Low Noise & Ripple: Clean regulated power output.
➤ Integrated Protection: Built-in over-current and thermal shutdown safety.

Ideal for UAVs, drones & robotics.

Download section
Download section

Technical:

  • 📝 Datasheet
  • 📐 Mechanical Drawing
  • 🧊 3D .stp Model

Certificates:

  • 📃 EU & RoHS DoC
  • 📃 NDAA doc
What's included?
What's included?

✔ 1x BEC12S-5A

BEC12S-5A overview

Technical

Reasons to choose the BEC12S-5A

Practical uses

Customer reviews
