SID-GNSS-RTK-SP0703
SP0703
€229,90
Tax exclusive

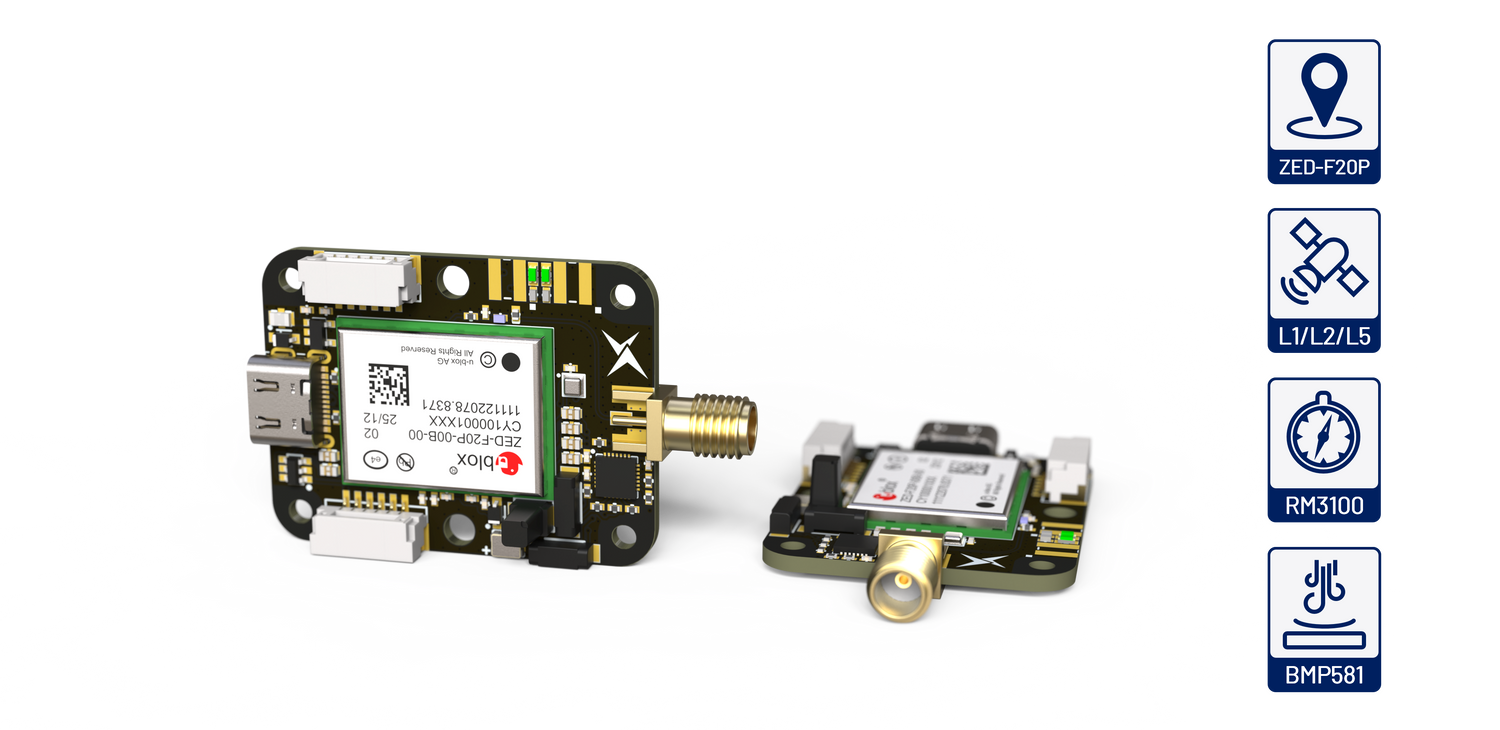

Triple-band L1/L2/L5 ZED-F20P GNSS RTK module. Onboard RM3100 and BMP581 sensors.
Beeilen Sie sich, nur noch 16 Artikel auf Lager!
Pairs well with
Official Siderion resellers:
Volume discounts
- From 50 pcs = You save 10%
- From 100 pcs = You save 12.5%
- From 200 pcs = You save 15%
- From 500 pcs = You save 17.5%
Made in France
This product has been designed and manufactured in Toulouse, France.
Need help?
Can we assist you with any questions about the pricing or our product?
SP0703
€229,90
High-Precision Multi-Band GNSS Module for Professional Applications
Key Features & Specifications
| Feature | Specifications |
|---|---|
| Supported constellations | GPS/SBAS -Galileo - BeiDou - QZSS - GLONASS - NavIC |
| GNSS bands | L1 / L2 / L5 |
| Position accuracy | 0.6mm (RTK) |
| Convergence time | <7 seconds (RTK) |
| Position update rate | Up to 25Hz |
| Timepulse (PPS) | Configurable: 0.25 Hz to 10 MHz |
| Embedded Sensors | RM3100 - BMP581 |
| Interface | USB, UART, I2C, GPS (SMA) |
| Correction services | NMEA v4.11 - UBX binary - RTCM v3.4 - SPARTN v2.0.2 |
| Antenna type | Active Antenna |
| Size | 40 x 30 x 8 |
| Weight | 13g |
What's inside the SP0703?
Why choose the SP0703?
✅ Centimeter-Level Accuracy
Achieves 10mm (1cm) precision with multi-band RTK GNSS.
✅ Dual-Band L1/L2 Technology
Reduces ionospheric interference, ensuring faster convergence and superior accuracy compared to single-band GNSS receivers.
✅ Fast Convergence
Sub-10-second RTK convergence for rapid, reliable positioning.
✅ Versatile Correction Support
Compatible with RTCM, VRS, and Network RTK for flexible, high-accuracy positioning.
✅ Compact & Energy-Efficient
Perfect for OEM integration and low-voltage applications.
✅ Base or Rover Operation
Use as a standalone receiver or in a base-rover RTK configuration.
✅ Anti-Jamming & Spoofing Protection
Advanced interference suppression for secure operation in challenging environments.
✅ Plug-and-Play Compatibility
Seamlessly integrates with any autopilots via a 6-pin JST-GH connector, with support for UART, I2C, USB, and MAVLink protocols.
✅ Fast & Reliable
Up to 20 Hz update rate for real-time responsiveness in dynamic applications.
Ideal Applications
➤ Drone surveying & mapping
➤ Precision agriculture
➤ Autonomous vehicle navigation
➤ Robotics & industrial automation
➤ Aeronautical & UAV systems

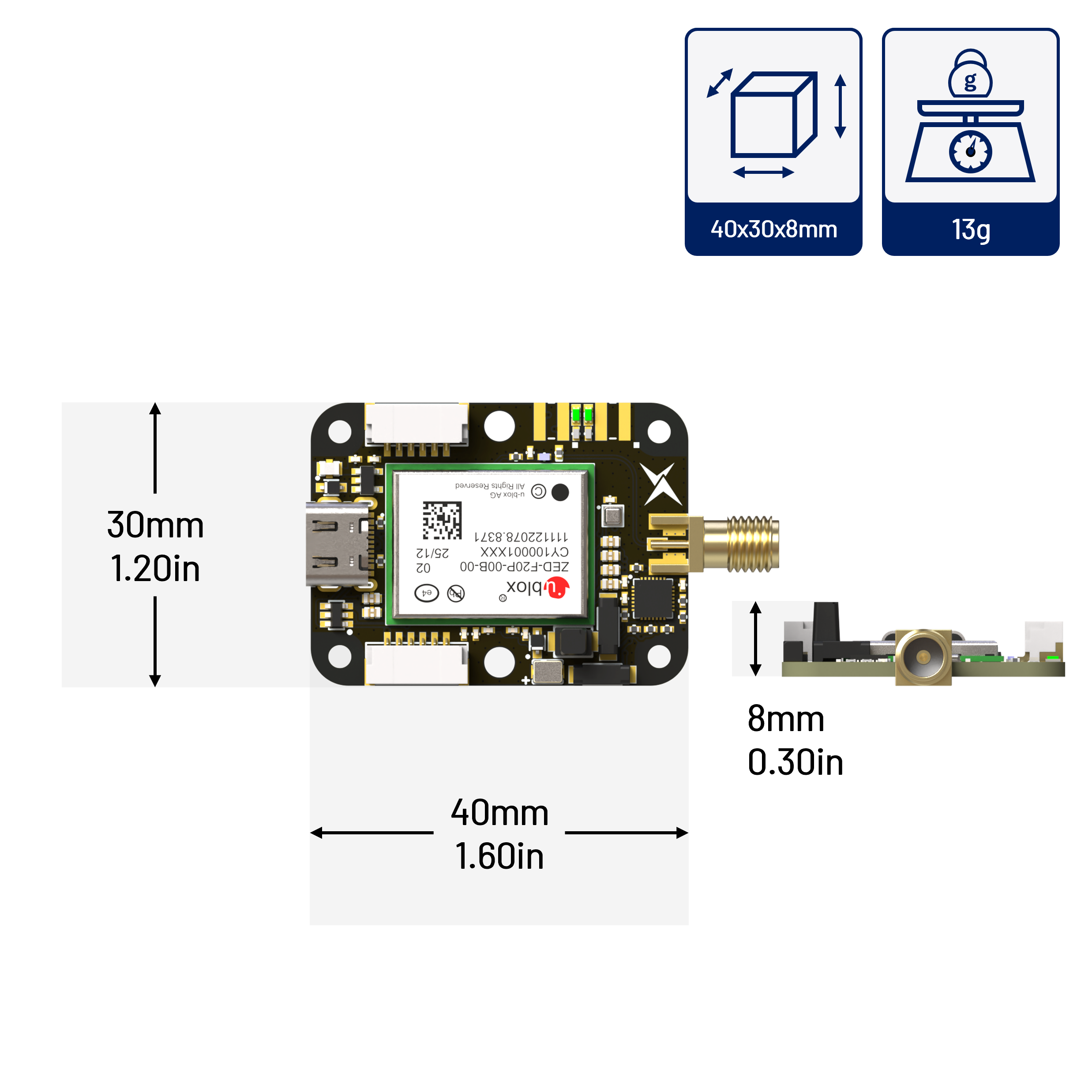

SP0703 mechanical dimensions
